The PAA5100JE-Q is PixArt Imaging’s latest optical navigation chip designed to enable navigation with working range of 15 mm to 35 mm over various surfaces. It is housed in a 28-pin land-grid-array (LGA) package that provides X-Y motion information. Aided by external illumination, it is most suitable for motion and surface detection in robot application.
Specifications
| Model | PAA5100JE |
| Product Type | Near Optical Flow SPI |
| Part no L214-ZSZ | Lens Assembly |
| Input Voltage (V) | 3.6V |
| Storage condition (℃) | -40 to 85 °C |
| Frame Rate (fps) | 242 |
| Working Range (mm) | 15 to 35 mm |
| Interface | 4-Wire SPI @ 2 MHz |
| Package Type | 28-pin LGA Package |
| Dimensional Accuracy (mm) | 6 x 6 x 3.08 mm |
| Shipment Weight | 0.005 kg |
Features:
- Working range of 15 to 35 mm
- No lens focusing required during lens mounting process
- Power consumption of 6 mA typical @ run mode (chip only)
- 16-bits motion data registers
- Motion detect pin output
- Internal oscillator – no clock input needed
Packages Includes:

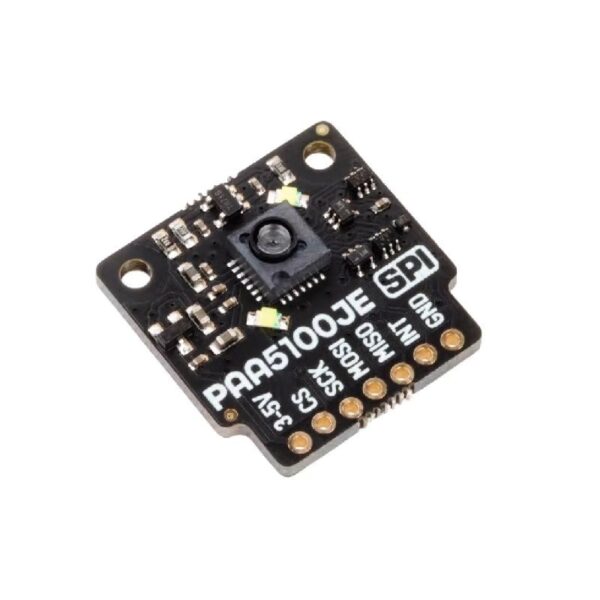

- 1 x PIMORONI PAA5100JE Near Optical Flow SPI Breakout
