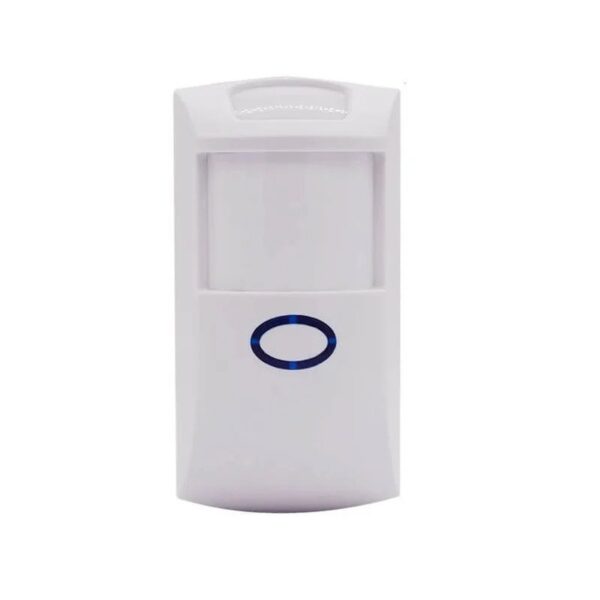

This is a Sonoff PIR2 433mhz Human Infrared Sensor for Sonoff RF Bridge. It is a type of “upgraded version” inactive mode infrared intrusion detector. It adopts imported super low power consumption digital microprocessor, random dynamic time division and energy deposit logic processing technology lens, dual induction, adjustable pulse counting. This module is consuming low energy and is free to move also detect any motion in real-time. Trigger connected device on or off via smart scene. This Device has “home” and “away” modes is set by the factory default.
Specifications
Work Voltage | 3V (2*AAA alkaline battery) |
Standby current | ≤8μA |
Alarm current | ≤15mA |
Required Battery | AAA battery |
Wireless frequency | 433.92MHz |
Wireless Transmit Code | 1527Mhz |
Transmitting Distance | ≥150m |
Detection angle | 110 Degree |
Detection Distance(m) | 12 m |
Working Temperature Range (°C) | -10 to 50 |
Length (mm) | 105 |
Width (mm) | 57.5 |
Height (mm) | 42.8 |
Weight (gm) | 61 |
Shipment Weight | 0.09 kg |
Features:
- Dual infrared
- Ultra-low-power microprocessors
- Double temperature compensation technology
- Robust and durable, suitable for homes, offices, sheds, garages, etc.
- Easy installation and set-up, wall-mounted
- backup plan Up to two years with (2*AAA) Alkaline battery.
Package Includes:
- 1 x Sonoff PIR2 433mhz Human Infrared Sensor for Sonoff RF Bridge
