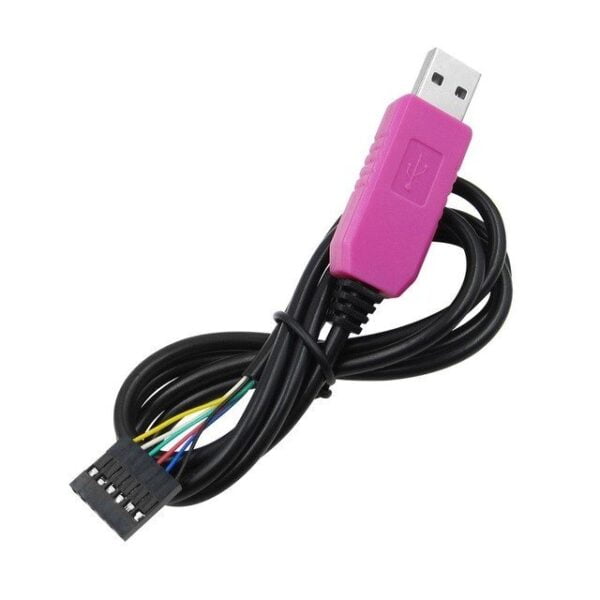

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable is a low cost and high performance USB-to-Serial Bridge Controller. It can provide a convenient solution for connecting an RS-232. In addition, it is useful for the full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host.
Specifications
| Input Supply voltage (V) | 3.3 ~ 5 |
| Connector type | USB To TTL RS232 |
| Total cable length (cm) | 80 |
| Weight (gm) | 32 |
| Shipment Weight | 0.033 kg |
Features :
- Supports RS-232 serial interface with Programmable baud rate from 75 bps to 12 Mbps
- Compatible with the RS422/RS485 interface
- Extensive flow control mechanism like adjustable high/low watermark level, automatic hardware or software flow control, and inbound data buffer overflow detection.
- The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
- The cables are available with a 6-way SIL, 0.1″ connector
- TTL level is 3.3V
- The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD’s FT232RQ USB to Serial
- UART interface IC device which handles all the USB signaling and protocols.
- The other end of the cable comes with a selection of different connectors supporting various applications
- Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V.
- Cable is available with either a 6-way SIL, 0.1 pitch connector, a 3.5mm audio jack, an 8 way and key 2mm pitch connector (especially relevant for use with VMUSIC2 or VDRIVE2) or bare, tinned wire end connection.
- It is USB 2.0 full speed compatible. The USB side of the cable is USB powered.
- Each cable is 97cm(38.19″) long and supports a data transfer rate up to 3 Mbaud.
Package Includes :
- 1 x 6Pin USB TTL RS232 Convert Serial Cable.
