Introducing WiPy 2.0. The tiny MicroPython enabled Wifi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy is all about taking the Internet of Things to the next level. Create and connect your things everywhere.
Specifications
| Input | 3.3V – 5.5V |
| RTC | 32KHz |
| WIFI | 802.11b/g/n 16 mbps |
| Bluetooth | Low energy and classic |
| Hash / encryption | SHA, MD5, DES, AES |
| AM | 512KB |
| External flash | 4MB |
| Analog channels | 8×12 bit ADCs |
| Timers | 4×16 bit with PWM and input capture |
| GPIO | Up to 24 |
| Security and Certifications | SSL/TLS support; WPA Enterprise security; FCC – 2AJMTWIPY2R; CE 0700 |
| Width (mm) | 42 |
| Height (mm) | 20 |
| Weight (gm) | 3.5 |
| Shipment Weight | 0.005 kg |
Features:
Basic
- Powerful CPU, BLE and state of the art WiFi radio
- 1KM Wi Range
- MicroPython enabled, the Linux of IoT for fast deployment
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected microcontrollers
- Hardware floating-point acceleration
- Python multi-threading
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- DMA on all peripherals
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack.
- The main processor is entirely free to run the user application. An extra ULP-coprocessor that can monitor GPIOs, the ADC channels, and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.
Package Includes:

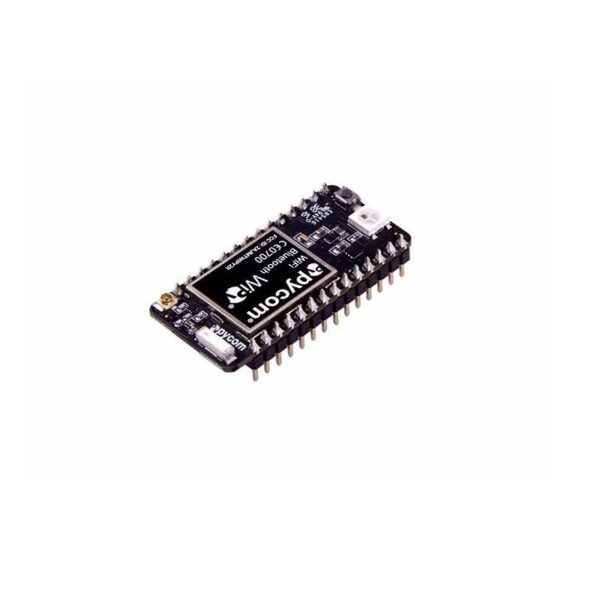

- 1 x Pycom WiPy 2.0 WiFi-Bluetooth IOT Development Board
