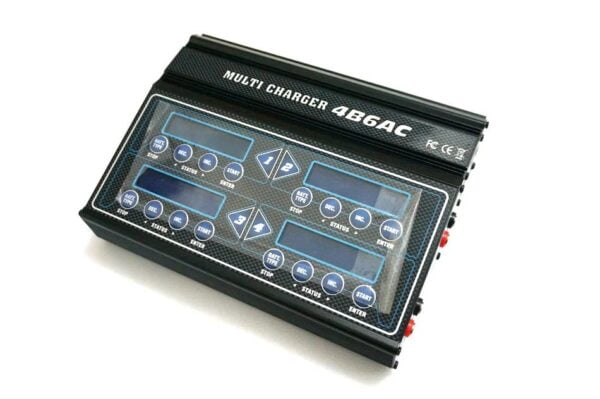

Quattro DC/AC 4B6AC 4 In 1 Multi LiPo Charger With Brief-Case

QUATTRO B6AC allows you to plug 4 batteries into one charger simultaneously, and it will intelligently and automatically charge all 4 of them at once to their maximum capacity.  To top of it, the batteries being charged do not even need to have the same configuration.  You can connect different chemistry(NiMH/NiCD/LiPo/LiFe)batteries into any of the charging ports.  No more staying up late for charging batteries.

Optimized operating software QUATTRO B6AC features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user’s fault.

 Specifications

Features:

Internal independent lithium battery balancer:

QUATTRO B6AC employs an individual-cell-voltage balancer. It isn’t necessary to connect an external balancer for balance charging. Balancing individual cells battery discharging During the process of discharging,  SKYRC  QUATTRO B6AC  can monitor and balance each cell of the battery individually. The error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal. Adaptable to various type of lithium battery QUATTRO B6AC is adaptable to various types of Lithium batteries,  such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery Purposes to charge Lithium battery varies,  ‘fast’ charge reduce the duration of charging, whereas ‘store’ state can control the final voltage of your battery,  so as to store for a long time and protect useful time of the battery.

Maximum safety Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection.  When the battery’s voltage exceeds the threshold, the process will be terminated automatically.

Automatic charging current limit:

You can set up the upper limit of the charging current when charging your NiCd or NiMH battery,  it is useful for the NiMH battery of low impedance and capacity in the ‘AUTO’ charging mode. Capacity limit. The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold:

The battery’s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached,  the process will be terminated.  This function is available by connecting an optional temperature probe, which is not included in the package.

Processing time limit:

You can also limit the maximum process time to avoid any possible defects.

Data store/load:

The maximum of five batteries’ data can be stored for each output(4×5SET). You can keep the data pertaining to the program setting of the battery of continuous charging or discharge. Users can call out these data at any time without any special program setting. Cyclic charging/discharging  1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and balancing to stimulate the battery’s activity.

PC based analysis using USB Communication:

QUATTRO B6AC offer PC based program can analysis the characteristic of the battery via USB port.  It shows a  graph of voltage,  current,  capacity curves. It also shows the individual voltage of each cell in the Lithium battery pack.

Package Includes:

• 1 x Quattro DC/AC 4B6AC 4 In 1 Multi LiPo Charger With Brief-Case
• Accessories set
• 1 x AC power cable (1Meter)
• 1 x Banana (male) to XT60(Male) connecotr cable (27 cm)
• 2 x Battery Point Holder Clips (Red+Black)
• 4 x HX Adapter with Connecting Cable
• 4 x Banana(male) to T-plug (male) connector cable (16 cm)
• 4 x XT60 (male) to T-plug (Female) connector cable (10 cm)
