Specifications:

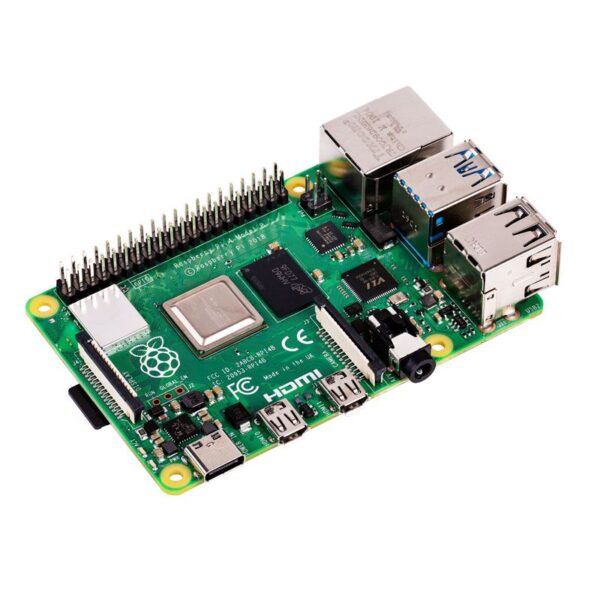

Model | Raspberry Pi 4 Model-B with 2 GB RAM |
Processor | Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
RAM | 2GB LPDDR4 SDRAM |
Connectivity | 2 × USB 2.0 Ports |
2 × USB 3.0 Ports | |
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, | |
BLE Gigabit Ethernet | |
Bluetooth 5.0 | |
Operating Power | 5V 3A DC via GPIO Header |
5V 3A DC via USB Type-C Connector | |
Power Over Ethernet (PoE)–Enabled (requires separate PoE HAT) | |
GPIO | (Fully backwar ds-compatible with previous boards) |
Standard 40-pin GPIO Header | |
Multimedia | H.264 (1080p60 decode, 1080p30 encode); |
H.265 (4Kp60 decode); | |
OpenGL ES, 3.0 Graphics | |
Video and Sound | 2 × micro HDMI ports (up to 4Kp60 supported) |
2-Lane MIPI CSI Camer a Port | |
2-Lane MIPI DSI Display Port | |
4-Pole Stereo Audio and Composite Video Port | |
Clock Speed | 1.5 GHz |
Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features |
Operating Temperature Range (°C) | 0 to 50 |
Dimensions (mm) LxWxH | 85 x 56 x 19 |
Weight (gm) | 52 |
UPC | 6.96583E+11 |
