Specification :

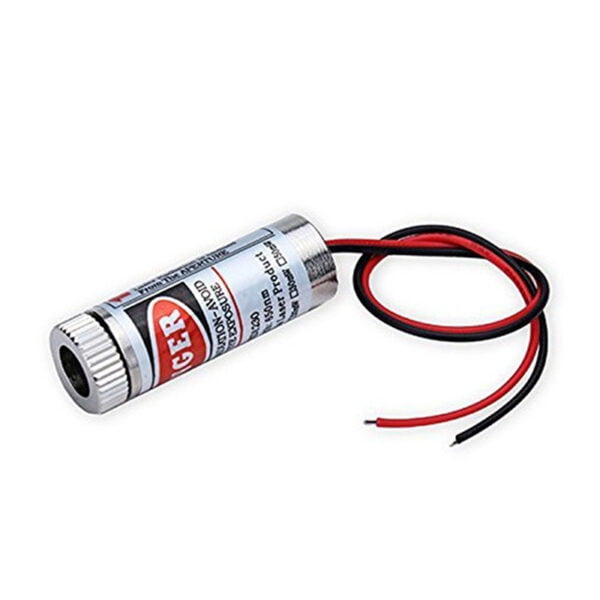

- Laser Output Type: Red LINE
- Operating Voltage: 3 – 6V
- Wavelength: 650nm
- Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW
- Working current: Min 10mA, Typical 20mA, Max 25mA
- Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC
- Weight: 15 gm.
Note :
- It does not emit the RED-SPOT or Single RED Cross LINE since it is a line laser module.
- Please use the DC power supply 3~6V.
- Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
- The laser beam must not be directed towards the eyes of a person or an animal in any way.
- The red cord is an anode, the black cord is a cathode.
Warranty : 10 days
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of compoindia customers from any kind of manufacturing defects. Reimbursement or replacement will be done against manufacturing defects.
