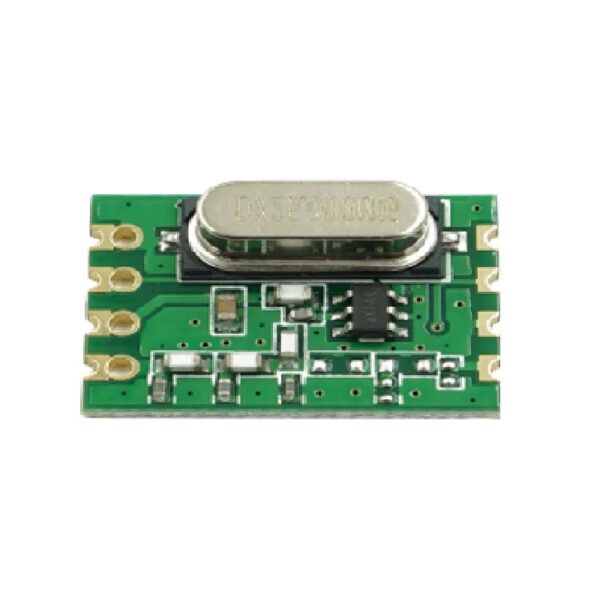

The RFM119W/RFM119SW is a high performance, highly flexible, low-cost, single-chip (G)FSK/OOK
transmitter for various,240 to 960 MHz wireless applications. It is a part of the HOPERF Next Gen RFTM family, which includes a complete line of transmitters, receivers and transceivers. TheRFM119W/RFM119SW provides the simplest way to control the data transmission. The transmission is started when an effective level turnover is detected on the DATA pin, while the transmission action will stop after the DATA pin holding level low for a defined time window, or after a two-wire interface (TWI) command is issued. The chip features can be configured in two different ways: setting the configuration registers through the TWI, or programming the embedded RFPDK. The device operates from a supply voltage of 1.8 V to 3.6 V, consumes 27.6 mA (FSK @ 868.35 MHz) when transmitting +10 dBm output power, and only leak 20 nA when it is in sleep state.
Specifications:
- Frequency Range: 240 to 960 MHz.
- FSK, GFSK and OOK Modulation.
- Deviation: 1.0 to 200 kHz.
- Frequency Range: 240 to 960 MHz.
- Output Power: -10 to +13 dBm.
- Supply Voltage: 1.8 to 3.6 V.
- Sleep Current: < 20 nA.
Features:
- Embedded EEPROM.
- Very Easy Development with RFPDK.
- All Features Programmable.
- FSK, GFSK and OOK Modulation.
- Deviation: 1.0 to 200 kHz.
- Two-wire Interface for Registers Accessing and EEPROM Programming.
- FCC/ETSI Compliant.
- RoHS Compliant.
Packages Includes:
- 1 x RF module RFM119W-915S1.
