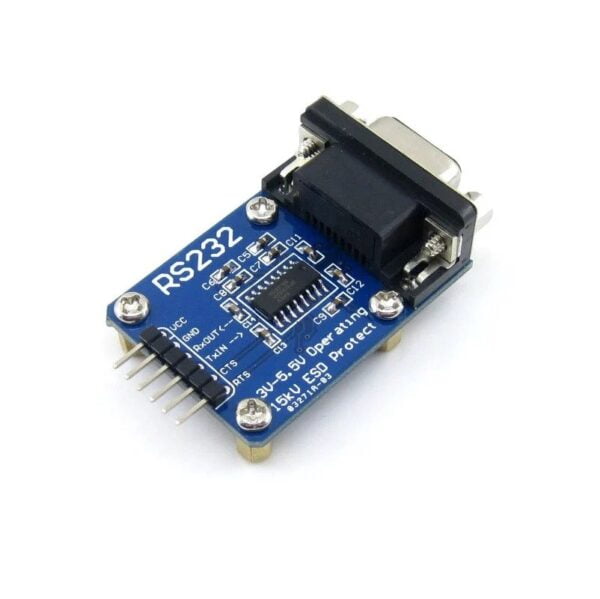

The RS232 Board is used for establishing RS232 communication with devices powered from 3V – 5.5V. It contains SP3232 (RS-232 Transceiver) and DB9 connector used for connecting PC and MCU. The RS232 Board features ESD protection and supports hardware flow control.
Specifications
| IC Chip | SP3232E |
| Operating Voltage | DC 3.0~5.5 V |
| Length (mm) | 45 |
| Width (mm) | 25 |
| Height (mm) | 2 |
| Weight (gm) | 18 |
| Shipment Weight | 0.02 kg |
Features:
- SP3232(RS232)
- DB9 connector
- UART port
Package Includes:
- 1 x RS232 to TTL SP3232 UART Transceiver Communication Serial Module
- 1 x 6-pin custom connector jumper wire
