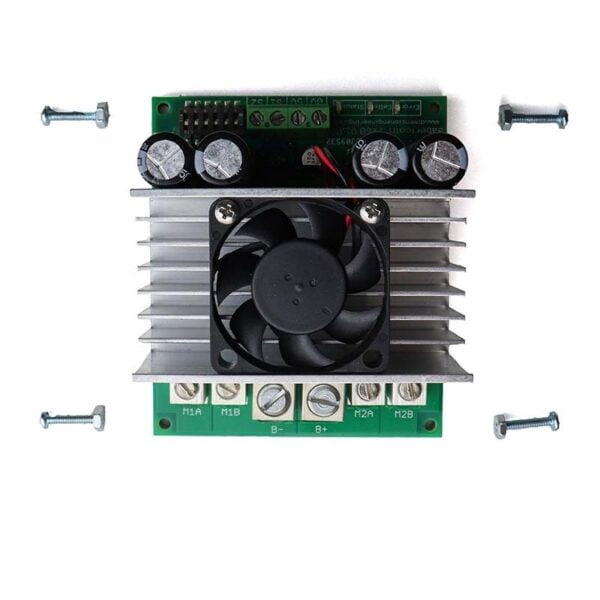

The Sabertooth Dual 60A Motor Driver is one of the most versatile, efficient and easy to use dual motor drivers on the market. It is suitable for high powered robots – up to 120lbs in combat or up to 1000lbs for general purpose robotics.
Out of the box, the Sabertooth can supply two DC brushed motors with up to 60A each. Peak currents of 120A per channel are achievable for a few seconds.
Overcurrent and thermal protection, it means you’ll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.
Specifications
| Driver Model | Sabertooth Dual 60A |
| Operating Voltage (VDC) | 6 ~ 30 |
| Peak Current (A) | 12:00 AM |
| Continuous Current (A) | Feb-00 |
| No. of Channels | 2 |
| Operating Modes | Analog, R/C, Simplified serial, Packetized serial |
| Battery Protection Mode | Yes |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| LED Indicator | Yes |
| Cooling Fan | Yes |
| Arduino Sheild | No- can be used with Wire connection |
| Speed Control | Yes |
| Dimensions in mm (LxWxH) | 76 x 89 x 46 |
| Weight (gm) | 292 |
| Others | Ultra-sonic switching frequency |
| Shipment Weight | 0.31 kg |
Features:
- Synchronous regenerative drive
- Ultra-sonic switching frequency
- Thermal and overcurrent protection
- Lithium protection mode
- Input modes: Analog, R/C, simplified serial, packetized serial
Package Includes:
- 1 x Sabertooth Dual 60A Motor Driver
- 1 x Mounting Nut Bolt Set and Quick Start Guide Manual
