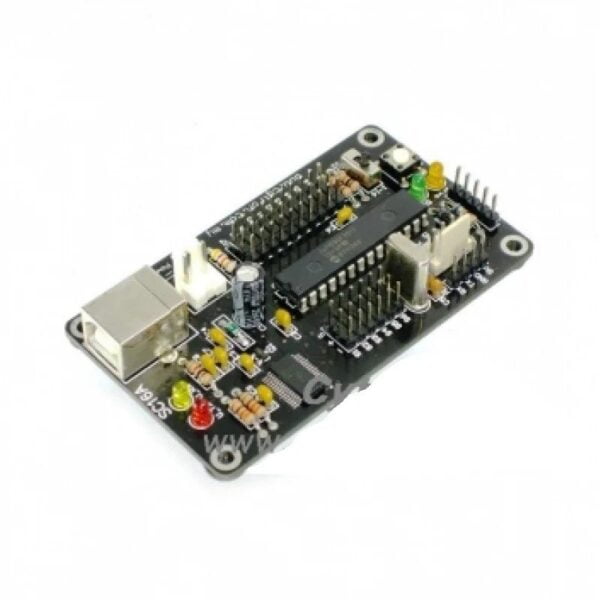

SC16A 16 Channel Servo Controller offers reliable yet user-friendly RC Servo motor controller to hobbyist and students. It is designed to control 16 independent standard RC (Remote Control) servo motors simultaneously in a single board.
Each servo signal pin is able to generate servo pulses from 0.5 ms to 2.5 ms, which is greater than the range of most servos, further allows for servos to operate 180 degrees. Through serial communication, SC16A can be daisy chain in 2 boards to offer independent control over 32 RC servo motors simultaneously.
Specifications
| UART | 9600 baud rate |
| Resolution | 1.367μs |
| Servo Pulse | 0.5ms to 2.5ms |
| Length (mm) | Mar-00 |
| Width (mm) | 48 |
| Height (mm) | 13 |
| Shipment Weight | 0.08 kg |
Features :
- 16 channels: Servo-driven independently
- Extendable to 32 Channels: Two controllers linked together to drive 32 servos
- Optional Position Reporting: User may request the position of an individual servo.
- Optional Servo Ramping: Choose one of 63 ramp rate (speed rate) for each servo.
- Sample GUI for computer*: User may control the servo via sample GUI software.
Package Includes :
- 1 x SC16A 16 Channel Servo Controller
- 1 x Type-B USB Cable
