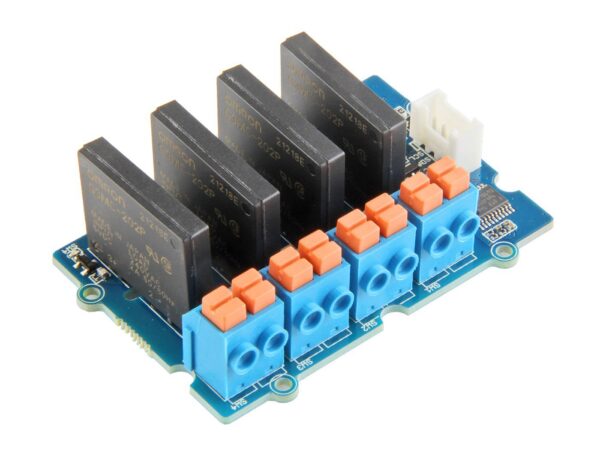

The Grove- 4-Channel Solid State Relay is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX,240VAC.
Instead of using coil, packaged solid-state relays(SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster-switching speed than the mechanical relays.
Specifications
Interface | I2C |
Switching Current | 2A |
Insulation Resistance | 1,000 M min. (at 500 VDC) |
Trigger Voltage (VDC) | 5 |
Switching Voltage (VAC) | 240@2A |
Storage Temperature | -30?C to 100?C (with no icing or condensation) |
Operating Temperature | -30?C to 80?C (with no icing or condensation) |
Operating Humidity | 45% to 85%RH |
Default I2C Address | 0x11 or 0x12 |
Output interface | DIP Female Blue 2 pin x4 |
Zero Cross | support |
Mounting hole diameter (mm) | 2 |
Weight (gm) | 150 |
Shipment Weight | 0.16 kg |
Features:
- Low power consumption
- Long-lasting
- Optional I2c address
- Advantages over mechanical relays:
- Solid-state relays have many faster-switching speeds compared with electromechanical relays and have no physical contacts to wear out
- Totally silent operation
- No physical contacts mean no sparking, allows it to be used in explosive environments, where it is critical that no spark is generated during switching
- Increased lifetime, even if it is activated many times, as there are no moving parts to wear and no contacts to pit or build up carbon
- Compact, thin-profile SSR of monoblock construction with an all-in-one lead frame incorporates a PCB, terminals and heat sink, which is much smaller than mechanical relays and can integrate more channels
Package Includes:
- 1 Grove – 4 Channel Solid State Relay
- 1 x Grove Cable
- 1 x Acrylic case
- 1 x A bag of Nylon nuts, studs and bolts
