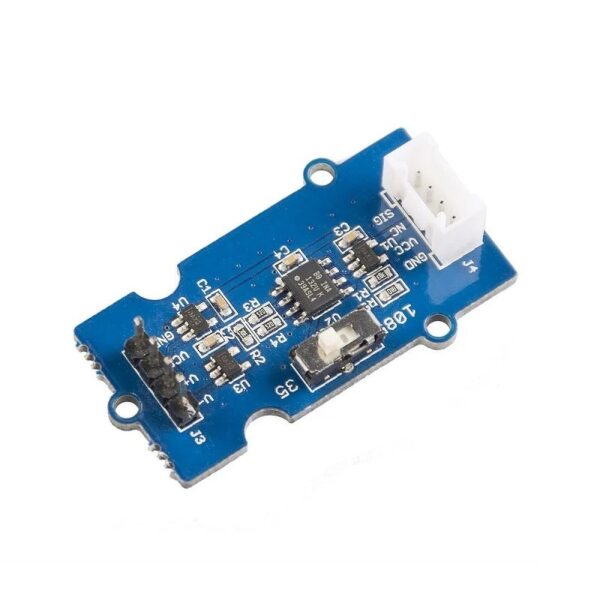

Find setting up an amplifier IC on the breadboard a troublesome and totally no-need-to-repeat job? This Grove module can save you clutter to settle up such an IC by integrating the whole operating circuit. It’s designed for precise differential-input amplification. Input the differential signals of your sensor to this module through the male pins, then your Arduino will get a precisely amplified output from the Grove interface. The gain scale factor is selectable. You can get 35 times or 1085 times amplification via a switch on the board
Specifications
Operating Voltage(V) | 3.3~5.5 |
Input Voltage (V) | 0.1/(Vcc-0.8)/Gain |
Output Voltage(V) | Vcc-0.80 |
Max Gain | 35/1085 |
Shipment Weight | 0.009 kg |
Features:
- High amplifying precision
- Selectable scale factor
- Can be conveniently read by Arduino
- Strong input protection
Package Includes :
- 1 x SeeedStudio Grove Differential Amplifier
