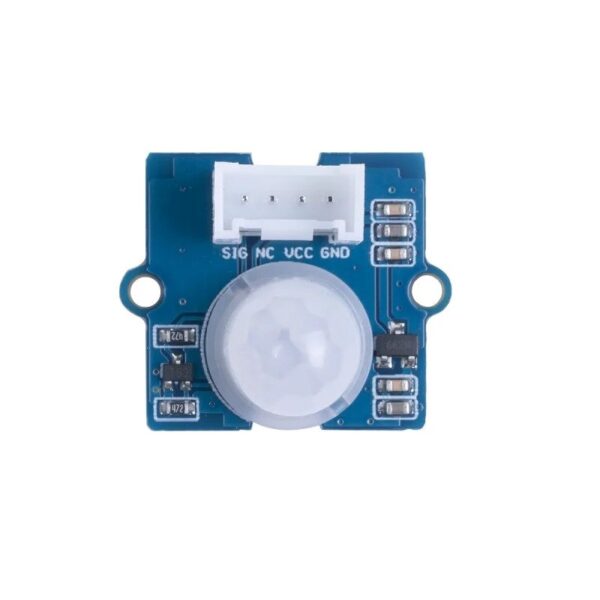

PIR sensor is an IR sensor to detect human motions. This Grove Digital PIR Sensor is the cheapest PIR sensor in the PIR families, however, it is able to give a quick response and generate a high signal from the “sig” Pin.
With the Grove interface, the Grove digital PIR Sensor is easy to be plugged and played. And it doesn’t need any Arduino Library.
Specification:
- Supply voltage: 3 V to 5 V
- Detection angle: 100°
- Detection distance: 3.2 m to 12 m
- Response time: up to 1 s
- Operating temperature: -20°C to 85°C
- Interface: Grove
- Dimensions: 20 x 20 x 11.5 mm
- Weight: 3 g
Features:
- High sensitivity: Able to output “high” or “low” levels quickly
- Budget-friendly: Cheapest PIR Sensor in our PIR family
- Easy to edit code: No additional library required
- Interface: Grove interface
Package Includes :
- 1 x SeeedStudio Grove Digital PIR Motion Sensor
