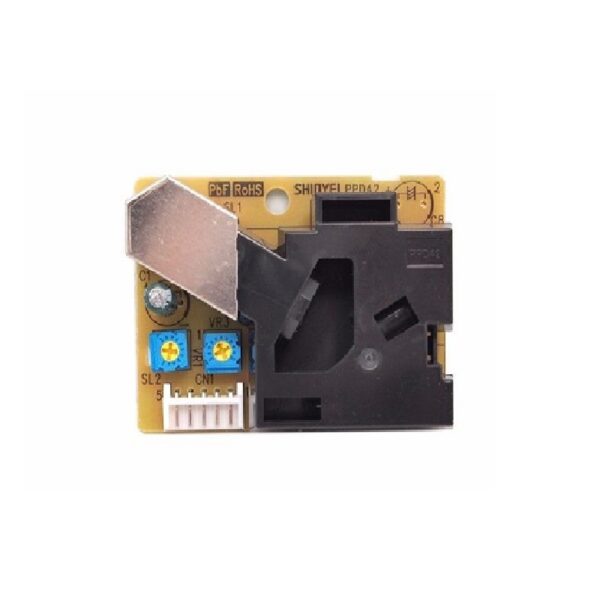

This Dust Sensor gives a good indication of the air quality in an environment by measuring the dust concentration. The Particulate Matter level (PM level) in the air is measured by counting the Low Pulse Occupancy time (LPO time) in a given time unit. LPO time is proportional to PM concentration. This sensor can provide reliable data for air purifier systems; it is responsive to PM of diameter 1μm.
Specifications
| Operating Voltage(V) | 3.3～5.5 |
| Working Humidity Range | 95% rh or less |
| Operating Temperature (°C) | 0~45 °C |
| Dimensions (mm) LxWxH | 59(W) × 45(H) × 22(D) mm |
| Output Format | Negative Logic Digital output, High: over 4.0V(Rev.2), Low: under 0.7V |
| Detecting Range | 0~28,000 / 0 ~ 8000 pcs/liter / pcs/0.01cf |
| Shipment Weight | 0.027 kg |
Features:
- Grove compatible interface(extra wire with connector)
- Stable and sensitive detection of not only cigarette smoke but also house dust which are indoor asthma triggers.
- Air is self-aspirated with the current of the air generation mechanism with a built-in heater.
- Easy maintenance. High sensitivity lasts long term.
- Dual output for the particle size over 1 micron and 2.5 microns (approx).
- More compact and lighter, and easy installation.
- PWM output
Package Includes :
- 1 x SeeedStudio Grove Dust Sensor
