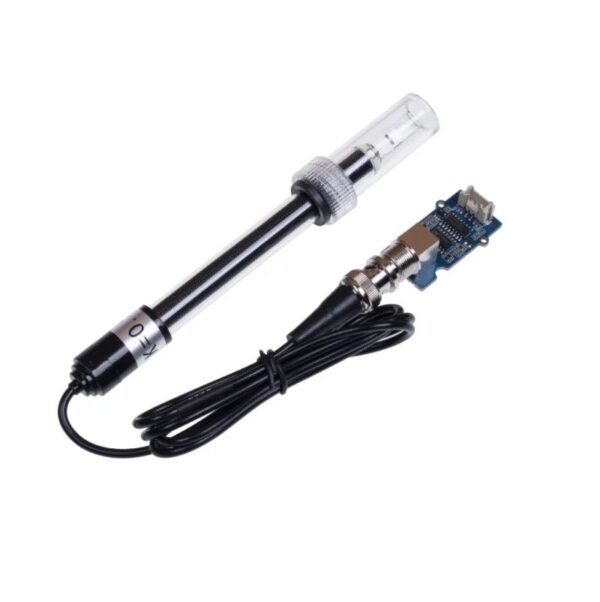

The electrical conductivity sensor (EC sensor) measures the electrical conductivity in a solution which usually used for aquaculture and water quality testing. The Grove – Electrical Conductivity Sensor is specially designed for a low-cost system with a relatively high accuracy which can cover most applications. The Grove connector and BNC probe interface make it easy to use and very suitable for Arduino and Raspberry Pi project. This Kit includes an EC probe and a driver board, and the driver board supports both 3.3V and 5V system.
Specifications
| Operating voltage | 3.3V/5V |
| EC Range | 0-2000us/cm |
| Resolution | ±5%（STP） |
| Response time | ＜10sec |
| Probe Interface | BNC |
| Operating temperature | 5-80℃ |
| Shipment Weight | 0.1 kg |
Features:
- Widely used for most applications of aquaculture and water quality testing
- Compact size for easy deployment
- Support with both Arduino and Rasberry Pi
- Cost-effective
Package Includes:
- 1 x EC Probe
- 1 x Driver Board
- 1 x Grove Cable
