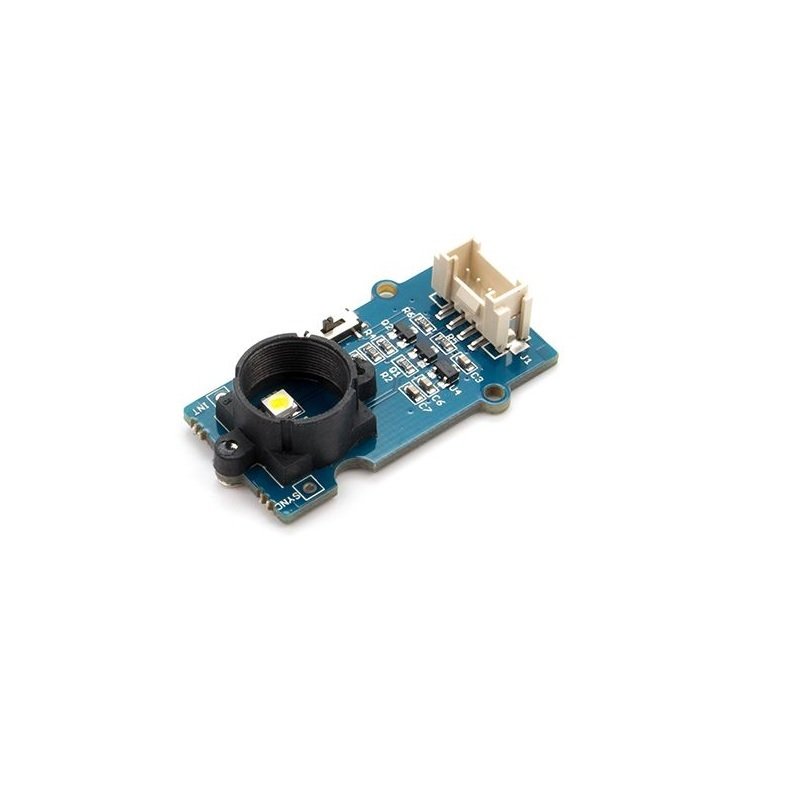

This is an updated version of the Grove – I2C Color Sensor module. The new version is based on the color sensor TCS34725FN with digital output I2C. Based on the 3*4 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.
Specifications
Supply Voltage | 3.3/5V |
PCB Size | 2.0 cm * 4.0 cm |
Operating temperature range | -40℃ to 85℃ |
Interface | I2C |
Dimensions | 42mm x23mm x10mm |
Weight | G.W 11g |
Shipment Weight | 0.02 kg |
Features:
- Grove compatible interface
16-Bit digital output with I2C
SYNC Input Synchronizes Integration Cycle to Modulated Light Sources
Operating temperature range -40°C to 85°C
Programmable interrupt function with User-Defined Upper and lower threshold settings
RoHS Compliant
Package Includes:
- 1 x Grove – I2C Color Sensor v2.0
