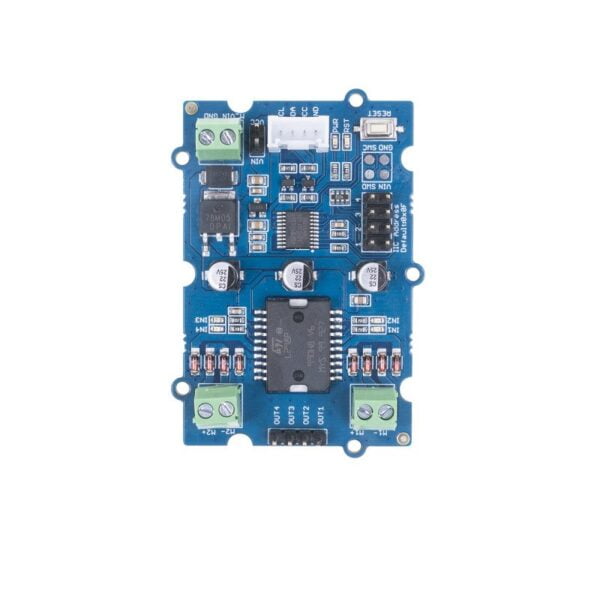

Grove – I2C Motor Driver(L298P) is a common-use motor driver for stepping motor and servo motor. It embeds an STM32 chip for burning the code to control the motor driver. This is a 2-channel motor driver, each channel can support up to 1A current. You can also use the I2C interface to transmit data from the peripheral microcontroller. The default I2C address is 0x0f and you are able to change the address of the Motor driver by connecting the I2C wire hat. The I2C address is selectable from 0x00 to 0x0f.
Specifications
| MCU | STM32f030f4P6 |
| Motor Supply Voltage | 6-12V DC |
| Interface | I2C |
| Channel | Jan-00 |
| Output Current | MAX 2A, 1A for each channel |
| Length (mm) | 135 |
| Width (mm) | 85 |
| Height (mm) | 13 |
| Weight (gm) | 22 |
| Shipment Weight | 0.025 kg |
Features:
- STM32f030f4P6 microcontroller for burning the code and control the Motor Driver.
- L298P Motor driver which can drive dc motor as well as a stepper motor.
- Selectable I2C address from 0x00 to 0x0f, the default I2C address is 0x0f.
- Dual-channel output with 1A current on each channel, max 2A current.
- Green LED on for the clockwise direction and red LED on for the anti-clockwise direction for each channel
Package Includes:
- 1 x SeeedStudio Grove – I2C Motor Driver (L298P)
- 1 x Grove cable
