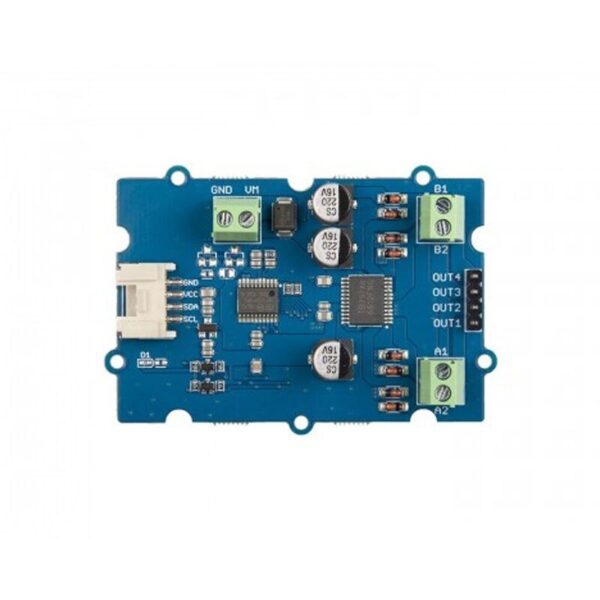

The Grove – I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.
Specifications
| MCU Operating Voltage | 3.3V / 5V |
| Motor Supply Voltage | 2.5 ~ 13.5 (5V Typical, 15V Max.) |
| Output Current | 1.2 A(ave)/3.2 A (peak) |
| Switching Frequency | 100kHz |
| Logic Interface | I2C |
| I2C Address | 0x14 (default) |
| Size(mm) | 60 X 40 X 12 |
| Weight | 13g |
| Shipment Weight | 0.04 kg |
Features:
- Onboard MCU
- CW/CCW/short brake/stop function modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- Standby (Power save) system
Package Includes:
- 1 x Grove – I2C Motor Driver (TB6612FNG)
- 1 x Grove Cable
