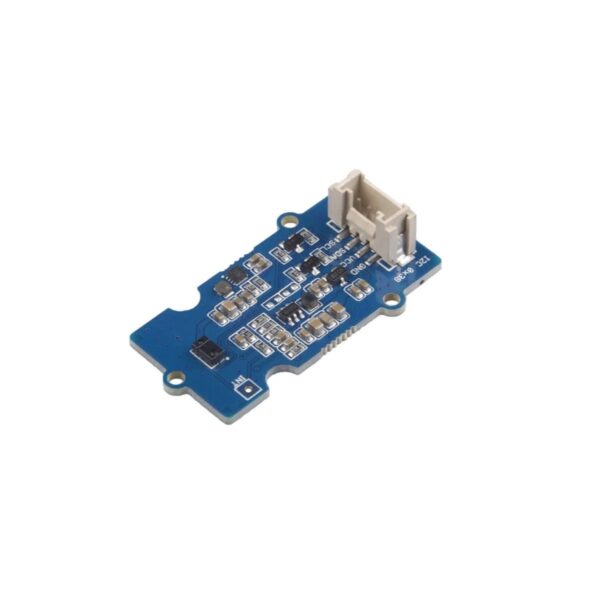

The Grove – Light & Gesture & Color & proximity sensor is TMG39931 based product, which features advanced Gesture detection, Proximity detection, Digital Ambient Light Sense(ALS), Color Sense(RGBC), and optical pattern generation/transmission for broadcast. This four-in-one sensor allows you to collect the data from the ambient environment and transfer it over the I2C bus.
Specification:
- Supply Voltage 3.3V / 5V
- Operating temperature -30~85℃
- Storage temperature -40~85℃
- Max. Lux [klx] 60
- Interface I2C
- I2C address 0x39
Features:
- A single device integrated optical solution
- Ambient light sensing
- UV and IR blocking filters
- Complex gesture sensing
- Ideal for operation behind dark glass – High sensitivity
- Proximity detection
- Barcode pattern generation and transmission
- Dual-use of a single internal LED
- Trimmed to provide a consistent reading
Package Includes :
- 1 x SeeedStudio Grove Light&Gesture&Color&Proximity Sensor(TMG39931)
- 1 x JST cable
