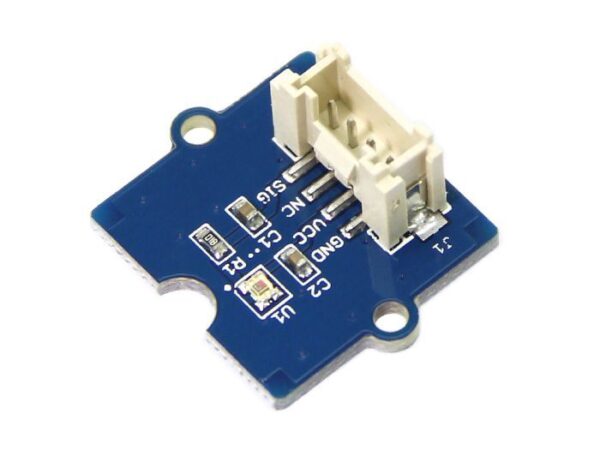

Grove – Luminance Sensor detects the intensity of the ambient light on a surface area. It uses APDS-9002 analog output ambient light photosensor. This has responsivity closer to the human eye.
This Luminance Sensor can be used in an application that requires automatic light adjustment in residential or commercial lighting.
Specifications
| Vcc Supply | 2.4 to 5.5 V |
| The linear output voltage range | 0~2.3V |
| Processor | APDS-9002 |
| Length (mm) | 130 |
| Width (mm) | 90 |
| Height (mm) | 10.5 |
| Mounting hole diameter (mm) | 2 |
| Weight (gm) | 8 |
| Shipment Weight | 0.012 kg |
Package Includes:
- 1 x Grove – Luminance Sensor
