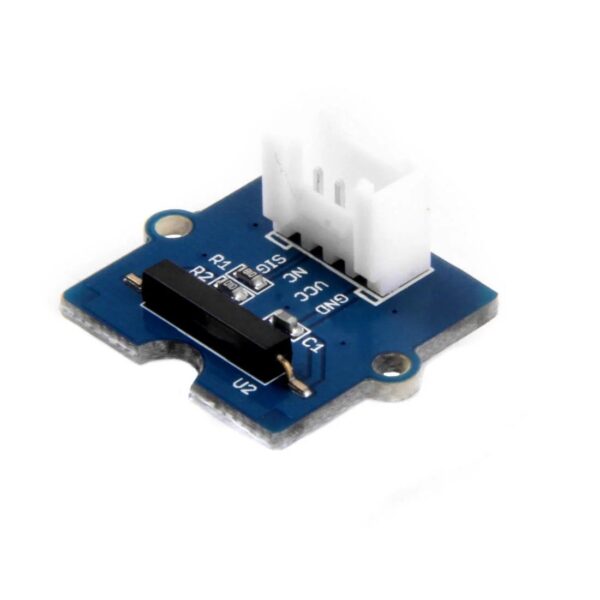

Have you ever thought of controlling a circuit based on proximity? What if we bring a special module that will perform this task? So for you, we are presenting the Grove – Magnetic Switch, a wonderful tool for designers to turn a circuit ON and OFF based on proximity. It’s a Grove interface compatible switch module.
This switch is based on encapsulated dry reed switch CT10. CT10 is Single-Pole, Single-Throw (SPST) type switch which has normally open ruthenium contacts. moreover; the switch comes with a double-ended type sensor. The sensor may be actuated with an electromagnet, a permanent magnet or a combination of both. The Grove – Magnetic Switch is a multi-purpose device. You can use it for various applications such as proximity sensor, security alarm sensor, level sensor, flow sensor, pulse counter, etc.
Specifications
| Operating Voltage (VDC) | 4.75 ~ 5.25 |
| Switched Power | 10 W |
| Switched Voltage AC, RMS value (max) | < 140 V |
| Switched Current (DC) | < 500 mA |
| Carry Current (DC) | < 0.5 A |
| Contact Resistance | < 200 mΩ |
| Insulation Resistance (MΩ) | 1000000 |
| Operating Temperature Range (°C) | -40 to 125 |
| Operate Range (AT) | 14885 |
| Length (mm) | 90 |
| Width (mm) | 50 |
| Height (mm) | 12 |
| Mounting hole diameter (mm) | 2 |
| Weight (gm) | 1 (approx) |
| Shipment Weight | 0.01 kg |
Features:
- Grove compatible interface
- Multipurpose device
- Minimum external parts
- Rugged encapsulation
Package Includes:
- 1 x Grove – Magnetic Switch v1.4
