RS-232 has been a serial communication standard in the industry for years. It’s still widely used and commonly heard in the industry though it dates back to 1969. However, with technological advancements, there are now faster data transmission methods. The RS232 is defined as the “Interface between data terminal equipment and data communications equipment using serial binary data exchange”.

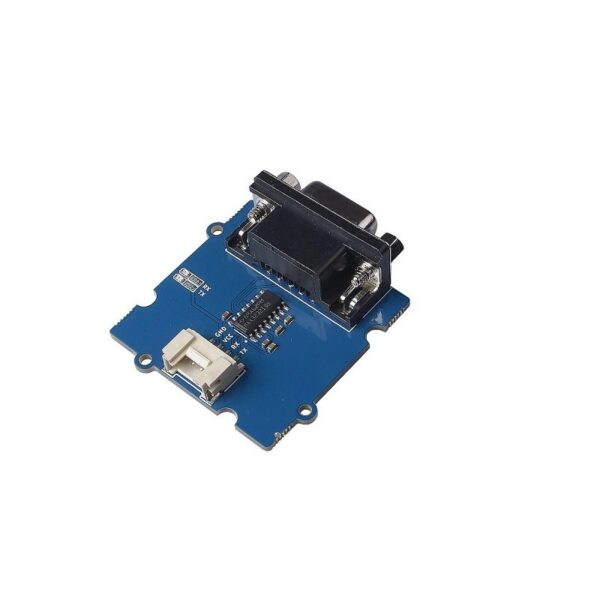

Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove – 232. The communication between your Arduino boards and the computer will be exceptionally convenient with the integrated Grove interface
This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud.
Specification:
- Supply Voltage 3.3V / 5V
- Driver input voltage 0V ~ 5.5V
- Receiver input voltage -25V ~ +25V
- Supply current(No load) 0.3mA
- Operating free-air temperature -40℃ ~ 85℃
- Storage temperature range -65℃ ~ 150℃
- Maximum data rate 250 Kbit/s
- Support baud rate 300bps ~ 230400bps
- Length 46mm
- Width 42mm
- Height 16.5mm
- size L: 40mm W: 40mm H: 15mm
- Weight 13.3g
- Package size L: 140mm W: 90mm H: 15mm
- Gross Weight 20g
Features:
- Easy to use
- Stable, high speed
- High-cost performance
- ±15-kV ESD Protection
- Low power consumption
- Two Drivers and Two Receivers
- Female DB9 Header
Package Includes :
- 1 x SeeedStudio Grove RS232
