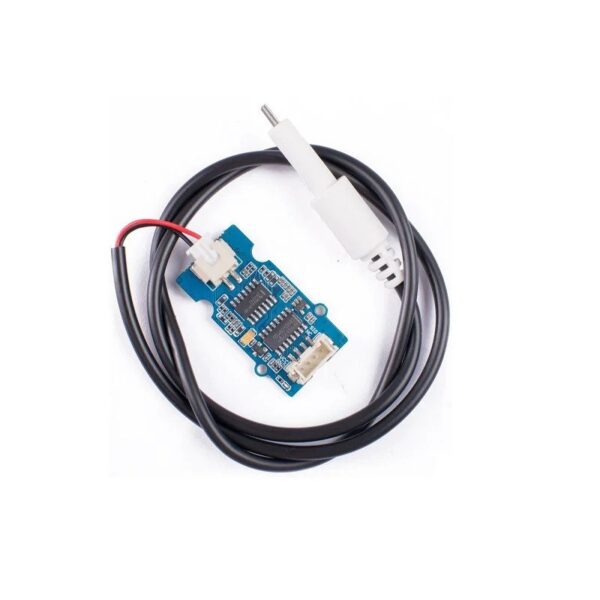

The Grove – TDS Sensor detects the Total Dissolved Solids (TDS) levels in the water which can be used to indicate the water quality. The Grove – TDS Sensor can be applied in water quality applications such as TDS meter, well water, aquarium, hydroponics, etc.
It supports 3.3/5V input voltage and 0 ~ 2.3V Output Voltage making it easy to be compatible with all Arduino Boards. The sensor also provides a waterproof probe, making the testing process much easier to handle.
Specifications
| Input Voltage | 3.3/5V |
| Output Voltage | 0 ~ 2.3V |
| Working Current | 3 ~ 6mA |
| TDS Measurement Range | ~ 1000ppm |
| Waterproof Probe Cable Length | 60cm |
| Connection Interface | XHB 2.54mm 2P |
| Dimensions | 20 x 40 cm |
| Weight | 0.025 |
| Shipment Weight | 0.05 kg |
Features:
- Analog Signal, easy to implement
- Power indication LED
- Support 3.3/5V Input Voltage
- Good Arduino Compatibility
- 0 ~ 2.3V Output Voltage can be easily implemented in 3.3/5V control system
- Waterproof TDS Probe
Package Includes:
- 1 x Grove – TDS Sensor
- 1 x 20cm Grove Cable
- 1 x Waterproof TDS Probe
