The Grove-Temperature&Humidity&Pressure&Gas Sensor(BME680) is not just a simple Arduino temperature sensor or barometer sensor but is a multiple function sensor that can measure temperature, pressure, humidity, and gas at the same time. Based on the BME680 module, it can provide you with rich environmental parameters at low power consumption and a wide measurement range. It integrates the 4-in-1 function on such a small module and will be very beneficial to apply on GPS devices or IoT projects such as your own Arduino weather station or weather forecast system.
Specifications
| Operating Voltage | 3.3V/5V |
| Operating Range | -40~+85?; 0-100% r.H.; 300-1100hPa |
| Humidity Absolute Accuracy | ? 3%r.H. (20-80 %r.H.,25?) |
| Humidity Resolution | 0.008 %r.H. |
| Pressure Absolute Accuracy | ? 0.6 hPa (300-1100 hPa, 0-65?) |
| Pressure Resolution | 0.18 Pa |
| Temperature Absolute Accuracy | ? 0.5? (25?, At,25) ? 1? (0-65?, At, full) |
| Temperature Resolution | 0.01? |
| Digital Interface | I2C(up to 3.4MHZ) SPI(3 and 4 wire, up to 10MHz) |
| I2C Address | 0x76(default) 0x77(optional) |
| Length (mm) | 23 |
| Width (mm) | 42 |
| Height (mm) | 7 |
| Mounting hole diameter (mm) | 2 |
| Weight (gm) | 9 |
| Shipment Weight | 0.01 kg |
Features:
- 4-in-1 multiple measurements: Temperature, Humidity, Pressure, Gas
- Low power consumption
- Wide measurement range
- Easy project operation: Grove compatible interface
- Optional output: Individual humidity, pressure and gas sensors can be independently enabled/disabled
Package Includes:

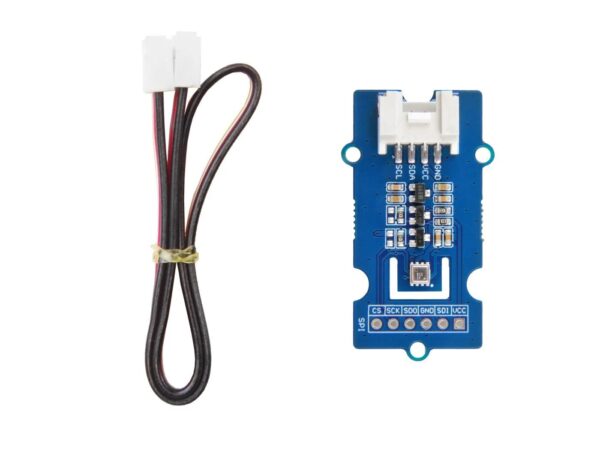

- 1 x Grove – Temperature, Humidity, Pressure, and Gas Sensor (BME680)
- 1 x Grove cable
