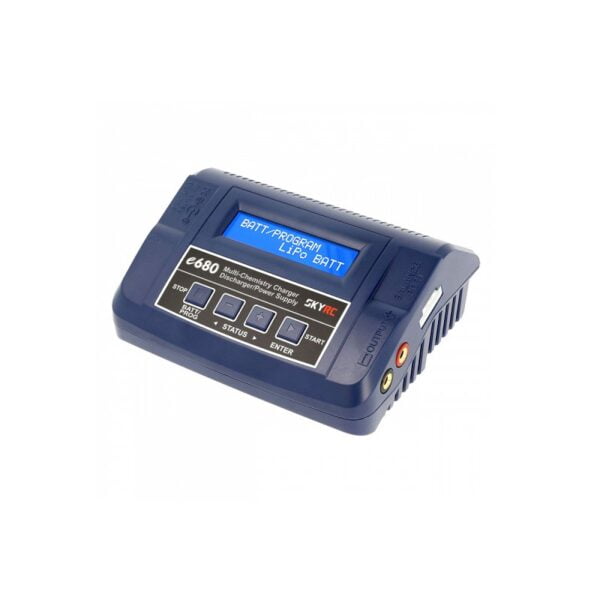

The SkyRC e680 Universal Charger is easy to use and at the same time offers a variety of features. This charger can charge all popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb and the system battery of the DJI Mavic. In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers, etc. with 13.8V and 80W max power via the power supply function.
All common loading and unloading modes such as charge, balance charge, fast charge, storage, and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode. Also, DJI Mavic batteries are supported with their own mode (optional charging cable necessary).
Specifications
| Input Voltage (V AC) | 100 ~ 240 |
| DC Input Voltage Range (V) | 11 ~ 18 |
| Output Power(Watt) | 80 W max |
| Charge Current Range (A) | 0.1 ~ 8 |
| Maximum Discharge Power (W) | 10 |
| Dischage Current Range (A) | 0.1 ~ 2.0 |
| Drain Current for Balancing Li-Po’s (mA/Cell) | 300 |
| Li-ion/Po cell count | 1 ~ 6 |
| NiCd/NiMH cell count | 1 ~ 15 Cells |
| Pb battery voltage | 2 ~ 20 |
| Length (mm) | 135 |
| Width (mm) | 110 |
| Height (mm) | 60 |
| Weight (gm) | 390 |
| Shipment Weight | 0.42 kg |
Features:
- Terminal Voltage Control.
- Re-Peak Mode for NiMH/NiCd Battery.
- Battery Voltage Meter.
- Battery Internal Resistance Meter.
- Up-to 80W DC Power Supply.
- AGM and Cold Mode for PB Battery
- Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic Batteries
Package Includes:
- 1 x SKYRC e680 Charger (Original)
- 1 x Power cable
- 1 x Charging cable XT60
- 1 x Connecting cable DC input
- 1 x Balancer board XH
- 1 x Manual
