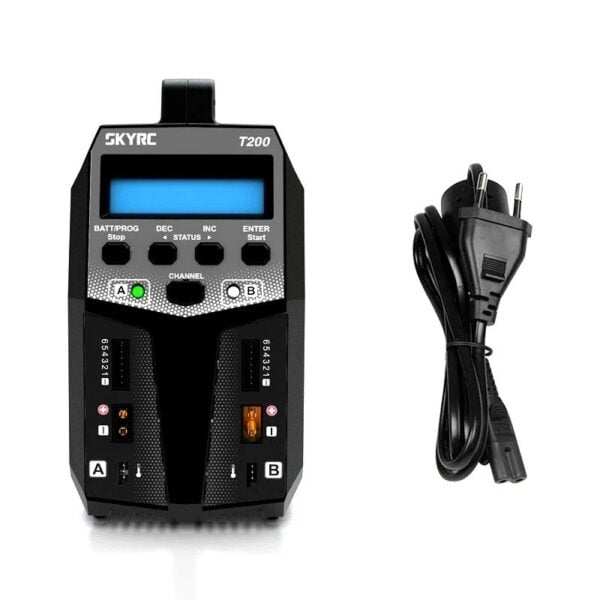

The SkyRC T200 is a 200W AC/DC charger that comes ready to charge in the most compact design yet while taking up minimal space in the pit area. Only taking up about as much bench space as a pair of battery packs, the charger delivers dedicated 100W integrated power per each of the two complete charging circuits. Inside the case, there’s enough transformer power to fill two batteries simultaneously at up to 12 amps each, that you can pump life into everything from a receiver pack to a 6S LiPo or 15S NiMH or NiCD. All the programmability you expect of a modern higher-level charger is built in!
With each charging channel programmed and operating independently, SkyRC T200 allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. To the top of it, the cells being charged do not even necessarily have the same configuration or be of the same chemical type.
Specifications
| Input Voltage (V AC) | 100 ~ 240 |
| DC Input Voltage Range (V) | 11 ~ 18 |
| Charge Current Range (A) | 0.1 ~ 12.0 |
| Charge Wattage | 100W X 2 |
| Maximum Discharge Power (W) | 10 |
| Dischage Current Range (A) | 0.1 ~ 2.0 |
| Battery Capacity Range | NiMH/NiCd:100-50000mAh |
| LiPo/LiIon/LiFe/LiHV:100-50000mAh | |
| Pb: 100-50000mAh | |
| Charge and Discharge | Charge Voltage |
| NiMH/NiCd: Delta peak detection | |
| LiPo: 4.18-4.25V/cell | |
| LiFe: 3.58-3.7V/cell | |
| Pb: 1.8-2.0V/cellLiIon: 4.08-4.2V/cell | |
| LiHV: 4.25-4.35V/cell | |
| Discharge Cut-off Voltage | |
| NiMH/NiCd:0.1-1.1V/cell | |
| LiPo:3.0-3.3V/cell | |
| LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell | |
| LiHV: 3.1-3.4V/cell | |
| Drain Current for Balancing Li-Po’s (mA/Cell) | 500 |
| Li-ion/Po cell count | 1 ~ 6 |
| NiCd/NiMH cell count | 1 ~ 15 Cells |
| Pb battery voltage | 2 ~ 20 |
| Dimensions (mm) LxWxH | 178 x 135 x 96 |
| Weight (gm) | 850 |
| Shipment Weight | 0.98 kg |
Features:
- 2 independent charging channels.
- 2 x 100W charging power and maximum 12.0A charging current.
- 10 Battery memories.
- High-contrast LCD display.
- Easy operation.
- XT-60 connector on charging output.
- XH balancer connector.
- Various security monitoring.
Package Includes:
- 1 X SKYRC T200 balance charger.
- 1 x Plug Cable
- 1 x User Manual
