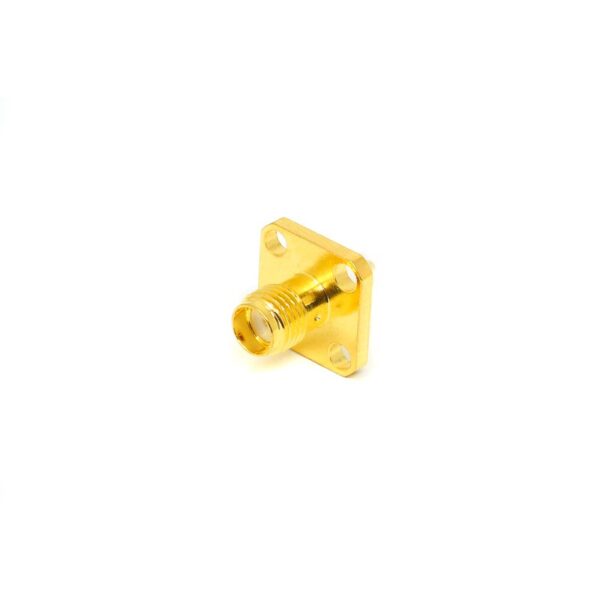

SMA Female Video Connector 4 Hole Square Flange Jack for Panel Mount
BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.
Main Application of SMA Connectors:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Specification
| Brand | ElecBee |
| Orientation | Straight |
| Gender: | Female |
| Mounting Type | Panel Mount |
| Termination Style | Solder Type |
| Mounting Feature | 4 Hole Flange |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance (Ω) | 50 |
| Shield Termination | NA |
| Shipping Weight | 0.01 kg |
Features and Specifications:
Features:
- Videos SMA Connector 4Hole Square Flange Jack for Panel Mount;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in a compact design;
- High-Quality Product.
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -55°C ~ +155°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
Note: Refer Schematic Image for Dimensional Details
Package Includes:
- 1 x SMA Female Video Connector 4 Hole Square Flange Jack for Panel Mount
