We at robu offers, a full range of cable mount as well as PCB mount RF connectors. These connectors are designed to match industry-standard 50 ohm and 75-ohm cables with longer life. This connector is a miniature quick connect/disconnect radio frequency connector used for wide range of applications like GPS and Network connectivity applications.
A wide range of standard connectors is listed in the category. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your need
Applications:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Specification
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Male |
| Mounting Type | Cable |
| Termination Style | Solder Type |
| Mounting Feature | None |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance (Ω) | 50 |
| Shield Termination | NA |
| Shipping Weight | 0.01 kg |
Features and Specifications:
Features:
- SMA Female Connector,Male/Plug,Straight/180°,Crimp Type,Coxial Cable;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
Specifications:
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -55°C ~ +155°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
Note: Refer Schematic Image for Dimensional Details
Package Includes:

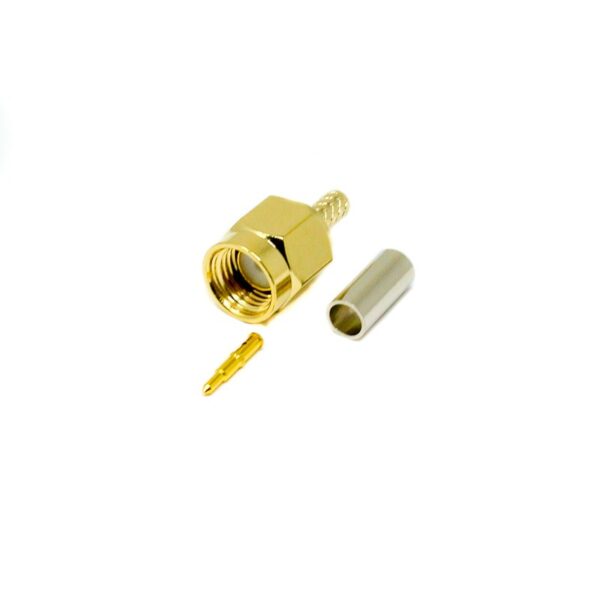

- 1 x SMA Male Gold Plated Straight Plug Connector Crimp Type for Cables
