One more Addition to SmartElex Smart motor Driver series is 15D is a dual channel motor driver which is made capable of supplying 15 amps continuous with peak currents up to 30 amps (10Sec) per channel.
The Driver can be operated on radio control, so no more interfacings and an additional connection are required analog, TTL serial and PWM. A variety of operating modes including with mixed and independent mode in radio to operate the driver remotely.
Specifications
| Input Voltage (V) | 7 to 28 |
| Max. Continuous Current (A) | Jan-00 |
| Peak Motor Current for 10 Sec | 35A |
| PWM Frequency (KHz) | Jan-00 |
| PCB Size ( L x W ) mm | 105 x 74 |
| Shipment Weight | 0.07 kg |
Features:
- Supplying 15 amps continuous with peak currents up to 30 amps (10 Sec) per channel
- Support motor voltage from 7V to 28V.
- Onboard Low, Internal resistance MOSFETs are switched at 16 KHz frequency.
- Overcurrent protection and indication.
- Thermal protection.
- Multiple input modes: RC, Analog, PWM, Serial Packetized.
- On board push buttons for test and manual operation.
Package Includes:

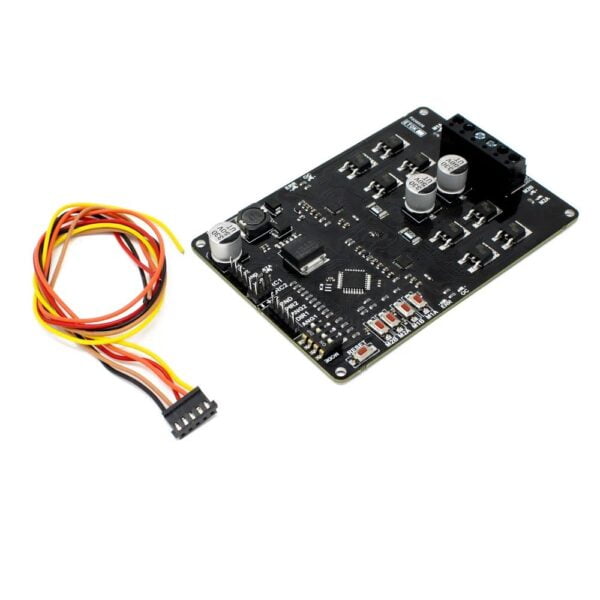

- 1 x SmartElex 15D Smart Motor Driver
- 1 x Connecting Cable
