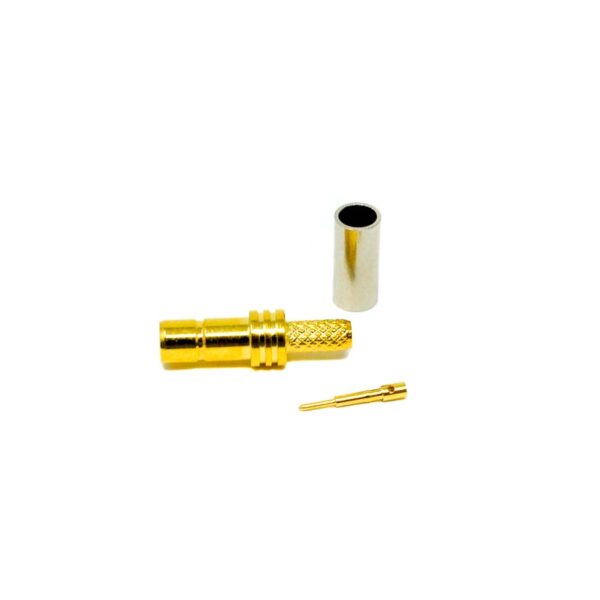

SMB Connector Female Straight Crimp Type For Coaxial Cable
BNC/TNC and a diverse range of RF connectors plugs, jacks and bulkhead jacks. These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.
Main Application of SMB Connectors:
Aerospace and Defense: Test Stands
Medical: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Specification
| Brand | ElecBee |
| Orientation | Straight |
| Gender: | Female |
| Mounting Type | Cable |
| Termination Style | Solder Type |
| Mounting Feature | None |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance (Ω) | 50 |
| Shield Termination | Crimp |
| Shipping Weight | 0.01 kg |
Features:
- SMB Connector,Straight/180°,Jack/Female,Crimp Type,Gold Plating;
- Snap-on coupling design for fast installation;
- With boardband performance and low reflection;
- To reduce your Cost by using die casting process in non-critical areas.
Mechanical Characteristics
- Coupling: Snap-on
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65°C ~ +155°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Note: Refer Schematic Image for Dimensional Details
Package Includes:
- 1 x SMB Connector Female Straight Crimp Type For Coaxial Cable
