Features :

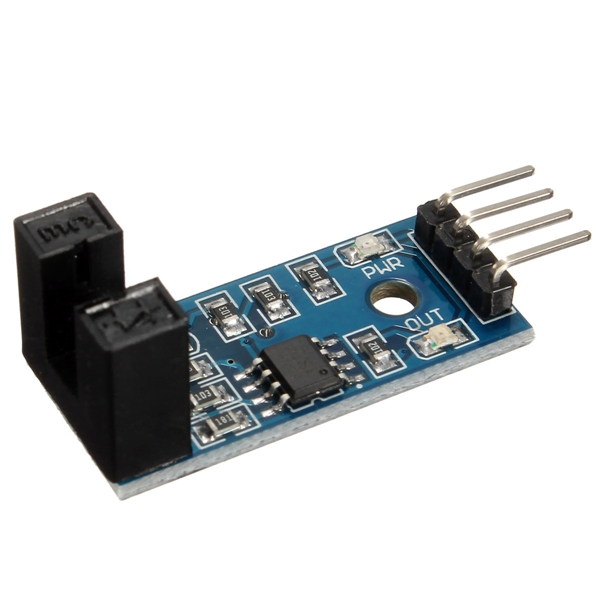

- Using imported groove optical coupling sensor, width 5mm.
- It has the output state light, if output high level, the lights are off. if output low level, it on.
- If it covered, it will output high level; otherwise, its output low level.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
Use the LM393 wide voltage comparer.
Wire connection
| VCC | The positive 3.3-5 v power supply. |
| GND | Connect power negative |
| DO | TTL switch signal output |
| AO | This is analog output |
