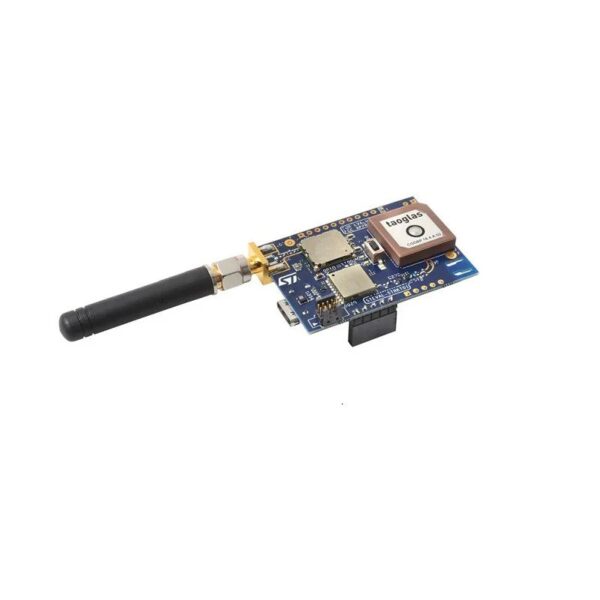

The STEVAL-STRKT01 LoRa IoT tracker is designed and optimized to implement the latest technologies in IoT tracker
applications such as asset, people, and animal tracking as well as fleet management.
The evaluation board simplifies prototyping, evaluation, and development of tracker innovative solutions. It comes with
comprehensive software, firmware libraries, tools, battery, cables, and plastic cases.
Thanks to the STM32L072CZ embedded in the CMWX1ZZABZ-091 LoRa® module (by Murata), the STEVAL-STRKT01 allows
acquiring a position, managing geofence and data logging from the Teseo-LIV3F GNSS module, and monitoring motion (LIS2DW12)
and environmental (HTS221 and LPS22HB) sensors.
Specification
| Processor | ARM® Cortex®-M0+ core |
| Flash Memory | 192 Kbytes |
| RAM | 20 Kbytes |
| EEPROM | 20 Kbytes |
| RF Range | 860 – 930 MHz |
| USB | 2.0 FS |
| Shipment Weight | 0.172 kg |
Features:
- Optimized IoT tracker solution over LoRaWAN™ network with simultaneous multi-constellation GNSS
- positioning and geofencing support
- Battery-operated solution with smart power management architecture
- First IoT ST reference embedding a USB Type-C connector and a port controller
- Environmental and motion sensors
- Data logging
Package Includes:
- 1 x STEVAL – STRKT01 Evaluation Board, LoRa IoT Tracker, Full IoT GNSS Asset Tracking Solution
