The TDA7377 is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guarantees the highest possible power performances with an extremely reduced component count. The on-board clip detector simplifies gain compression operation. The fault diagnostics makes it possible to detect mistakes during car radio set assembly and wiring in the car.
Specifications
| Model | TDA7377 Power Amplifier |
| Power supply | DC 9-15V/50-100W |
| Channel type | 2.0 stereo |
| Response frequency | 20Hz-20KHz |
| Matching speakers | 4-8 20-120W 3”-10” bookshelf speaker, floor speaker |
| Output Power | 35W+35W |
| Dimension (L x W x H) mm | 60×56×50 |
| Weight (gm) | 81 |
| Shipment Weight | 0.085 kg |
| Shipment Dimensions | 8 × 5 × 3 cm |
Features:
- Powerful 70 W Stereo output Can be accessed by two 4-8Ω 10-50W speakers
- A large volume of small size
- High signal to noise ratio
- Upgraded version of the radiator, wider and thicker, better cooling effect
- Fit for Bookshelf speakers, CRT televisions, radios, and other small amplifiers
Package Includes:

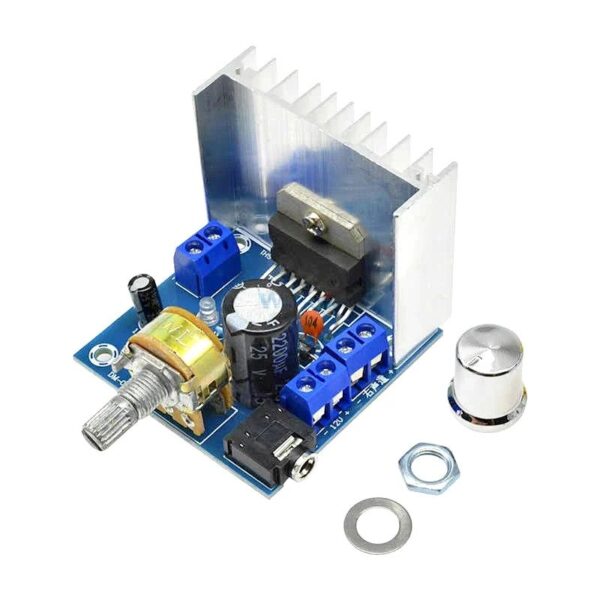

- 1 x TDA7377 DC 12V 35W Dual Channel Noiseless High Power Amplifier Board
