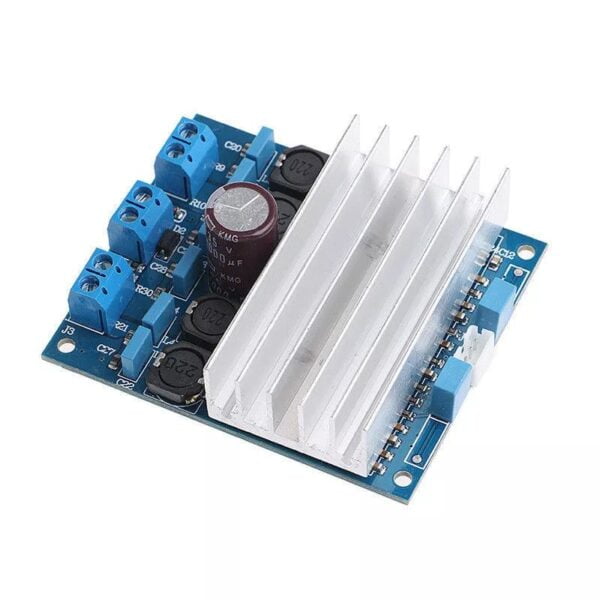

This low-cost FX-Audio amplifier module is based on a TDA7492 amplifier chip allowing it to deliver a power of 2x50W under 8Ω, and this has high efficiency due to its Class D architecture. The module can also be used in BTL (bridge) mode for the power of 1x100W under 4Ω. The amplifier chip is combined with a heat sink to ensure proper heat dissipation. On the connector site, there is a PH 2.0mm 3 pins connector at the input and screw terminals at the output for the left and right channels.
Specifications
| Model | TDA7492 |
| Input Voltage (V) | 10 to 26 |
| Working Mode | Class D (PWM modulation type) |
| Power (W) | 50 |
| Length (mm) | 72 |
| Width (mm) | 58 |
| Height (mm) | 2100.00% |
| Weight (gm) | 58 |
| Shipment Weight | 0.059 kg |
Features:
- Class D amplifier produces 2 x 50 watt @ 8 ohms
- Can be wired R+ to L+ for mono mode
- 8″ stereo wiring harness included
- Short-circuit and over-temperature protection
- Supply Voltage 10-26 V DC
Package Includes:
- 1 x TDA7492 50*2 100W HighPower Digital Amplifier Board
- 1 x 8″ Stereo Wiring Cable
