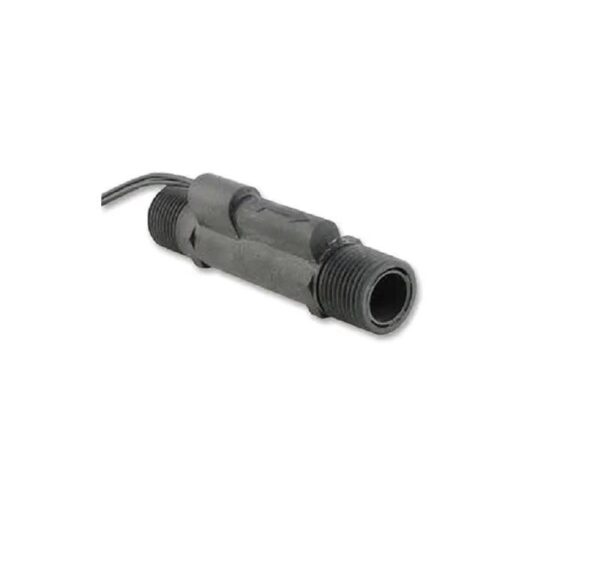

The FCS-01 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings. Suitable for hot and cold potable water. Black Noryl housing. Ruthenium contact.
Specifications:
- Housing Material: Noryl
- Max Switching Voltage VDC: 200
- Max Switching Voltage VAC: 250
- Max Switching Current Amps: 1
- Max Switching Load Watt: 40
- Shuttle Material: Noryl
- Spring Material: Stainless Steel
- Contact Material: Ruthenium
- Operating Temperature: °C -30 to 85
- Medium: Water
- Shock: 50g for 11ms Duration
- Vibration: 35g up to 500Hz
- Maximum Pressure: 10 Bar @ 20ºC
Features:
- UL94-HB Flammability rating
- Minimum pressure drop
- Operates from a small head of water
- Mount in any axis
- Suitable for water and air flow switching
- Food grade material
Package Includes:
- 1 x TE CONNECTIVITY Flow Switch, FCS-01
