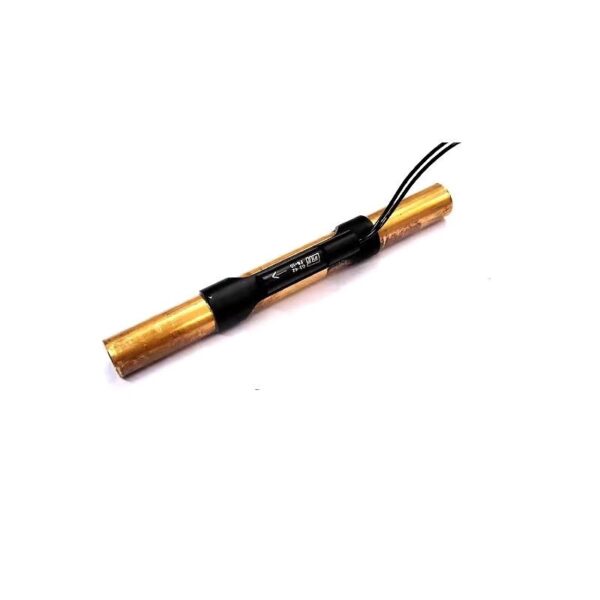

The FS-10 is a Vertical Flow Switch in a 15mm copper pipe. Operates from a small head of water. Suitable for water and air flow switching. Reed switch reliability. Ruthenium contact. UL94-HB Flammability rating, Easy installation,Reed switch reliability
Specifications:
- Maximum Switching Volts: 300 VDC
- Maximum Switching Current: 1.0A
- Maximum Watts: 15 Watts
- Mounting: Flow Switch Vertical
- Material: Copper
- Fitting Flow Switch 15mm pipe size
- Contact Form: Form A -SPST
- Contact Material: Ruthenium
- Cable Type: 2 x 16/0.2mm PVC insulated 1.0M long
- Cable Colour: Black/Black
- Operating Temperature Range: 85 ºC
- Medium/Liquid: Water
- Flow Rate: 0.5 litres/min
- Operating Pressure: 10BAR
- Mounting Shock: 50g for 11ms duration
- Mounting Vibration: 35g up to 500Hz
Features:
- 15mm copper pipe
- Minimal pressure drop
- Operates from a small head of water
- Vertical mount 15º
- Suitable for water and air flow switching
Package Includes:
- 1 x TE CONNECTIVITY Flow Switch, FS-10
