The TMC2209 is a stepper motor driver module that provides reliable and precise motor control for 3D printers, CNC machines, and other robotic applications. It is based on the Trinamic Motion Control’s stealthChop2 technology, which provides silent and smooth operation of the motor.
The module comes with a built-in heat sink that helps to dissipate heat and keep the driver cool during operation. This is especially important when using the driver at high currents or for long periods of time. The heat sink helps to prevent the driver from overheating, which can cause the motor to lose steps or even fail.
Specification
| Operating Voltage | 4.5V to 28V DC |
| Input Signal Logic Voltage | 3.3V to 5V DC |
| Maximum Peak Current | 2A per phase (use with Heatsink and Fan only) |
| Maximum Continuos Current | 2A |
| Compatiblity | 3V3 and 5V microcontrollers |
| Shipment Weight | 0.01 kg |
Features:
- High performance
- Thermal management
- Flexible micro stepping
- Protection features
- Easy to use
Package Includes:

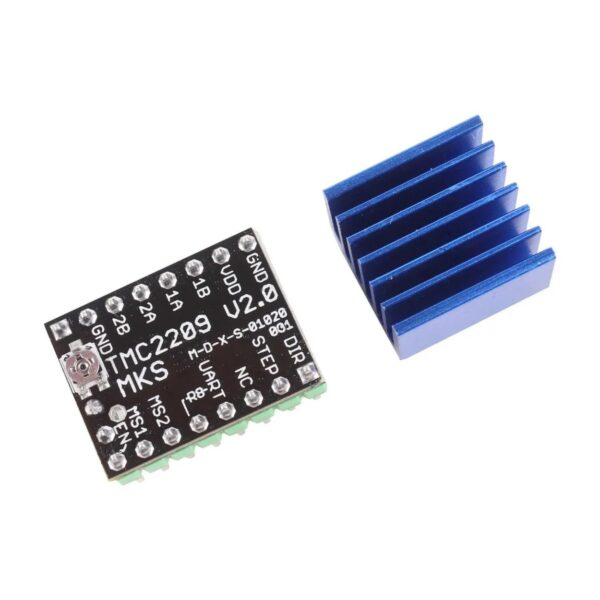

- 1 x TMC2209 Stepper Motor Driver Module with Heatsink
