The TMC2209 V3.0 is a high-performance stepper motor driver module that is designed to drive stepper motors with up to 2.8A peak current (1.7A RMS). It is a popular choice for 3D printers, CNC machines, and other automation applications that require precise and smooth motor control.
One of the key features of the TMC2209 V3.0 driver module is its stealthChop2 technology, which provides silent and smooth operation at low speeds. The module also supports a spread cycle, which allows for high-speed motor operation with excellent torque characteristics
Specification
| Microstepping | Up to 1/256 micro stepping |
| Maximum current | 2.8A RMS, 4.0A peak |
| Voltage range | 4.75V to 28V DC |
| Logic Voltage | 3.3V and 5V compatible |
| Communication | UART (Universal Asynchronous Receiver/Transmitter) interface |
| Shipment Weight | 0.01 kg |
Features:
- Communication: UART (Universal Asynchronous Receiver/Transmitter) interface
- CoolStep: Trina mic’s technology for reducing motor current and power consumption based on load requirements
- StallGuard: Trina mic’s technology for detecting motor stalls without the need for end-stop switches
- StealthChop2: Trina mic’s technology for ultra-quiet motor operation
- SpreadCycle: Trina mic’s technology for optimizing motor performance and reducing noise
- Thermal protection: Over-temperature detection and shutdown
Package Includes:

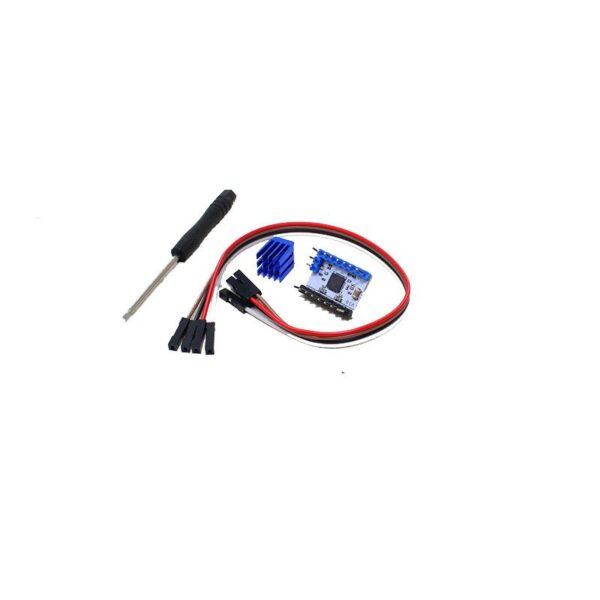

- 1 x TMC2209 V3.0 Stepper Motor Driver Module
