This is a TTGO TCall & SIM800C-DS V02 ESP32 WIFI Bluetooth Nano Card Slot SIM800C Development Board. The Module is a custom ESP32 based development board with an onboard 2G/GPRS Module SIM800C. The new board combines ESP32 WiFi & Bluetooth WiSoC with SIMCom SIM800C GPRS module, and also happens to rely on a USB-C port for power and programming instead of the more common micro USB port on this type of hardware.
Specification
| Chipset | ESP32-WROVER-B |
| FLASH | 4MB |
| PSRAM | 8MB |
| Power Supply | USB 5V |
| Charging current | 500mA |
| Battery Required | 3.7V lithium battery |
| USB to TTL | CP2104 |
| Working voltage | 2.7V-3.6V |
| Transmit Power | 22dBm |
| Communication distance | 300 m |
| On-board clock | 40MHz |
| Working temperature range | -40~85℃ |
| Length (mm) | 75 |
| Width (mm) | 30 |
| Weight (gm) | 17 |
| Shipment Weight | 0.022 kg |
Features:
- The wireless module is integrated with ESPRESSIF-ESP32 240MHz Xtensa dual-core 32-bit LX6 microprocessor.
- It needs a power supply of 5V/1A and has a Type C port.
- It features 802.11 b/g/n wifi protocol and Bluetooth v4.2BR/EDR and BLE standard protocol.
- The wireless communication module supports cloud server development and SDK for user firmware development.

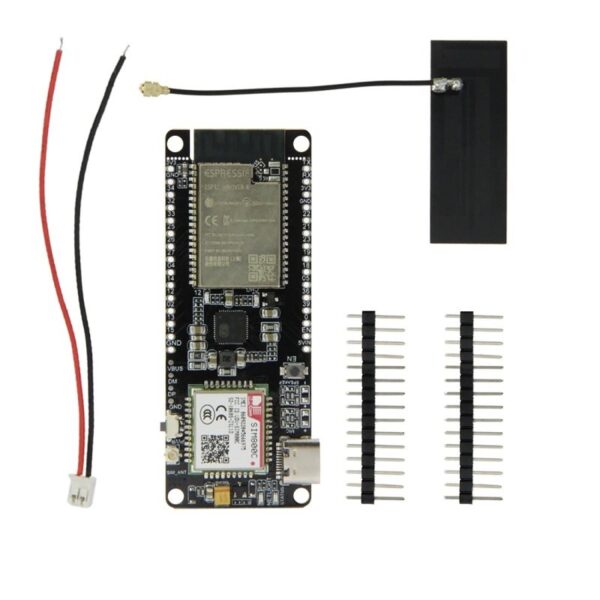

Package Includes:
- 1 x TTGO TCall & SIM800C-DS V02 ESP32 WIFI Bluetooth Nano Card Slot SIM800C Development Board
- 1 x Power Connecting cable
- 1 x Sticker Antenna
- 1 x Berg Pins.
