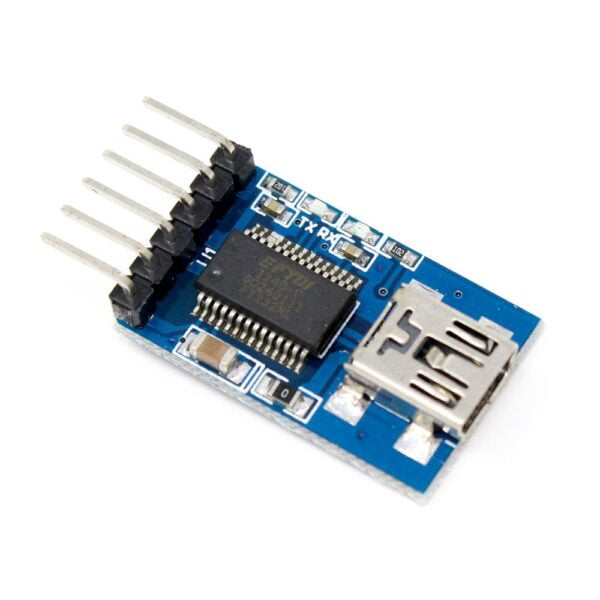

By using the TTL FTDI Transmitter USB For 3.3V 5V dual power FT232RLFTDI MWC Programmer, you can easily install your project or product into a USB interface. The cs2102 is an SI labs product that can communicate (for example, the Arduino multiview 2.5 is the same as the GPS in the APM pack and any other.
A device that has a TTL port provides the computer with a USB port. By connecting this converter to the computer and installing the driver program, which adds a virtual serial port to the computer ports, which is capable of working with Windows operating systems, MAC, Linux. On the output of this converter, in addition to the TXD, RXD and GND pins, the output voltage is also 5v and 3.3v.
Specifications
| IC Chip | FT232RL |
| Connector Type | Mini USB |
| Length (mm) | 25 |
| Width (mm) | 16 |
| Height (mm) | 6 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
Features :
- Automatic detection of data transfer speeds up to 1Mbps
- Data exchange capability with an external interface with UART protocol
- Output Voltage 5v and 3.3v Indicator LEDs USB Connector
- With RX and TX Indicator LEDs
- Manage System for Reducing Flow In Idle and Standby Mode
- Support for serial output devices such as modems, card reader devices, digital cameras and more.
- Interface: Mini USB
- +3.3V and +5.0V signal Level Support using SMD jumper.
- Supports Windows 8, Windows 7, Windows Vista, Windows XP, Linux, Mac OS X, Windows CE 4.2-5.2, Windows CE 6.0
- DTR and CTS pins. DTR pin can be used for Automatic Reset of Arduino Pro Mini boards while coding downloads
Package Includes :
- 1 x TTL FTDI Transmitter USB For 3.3V 5V dual power module.
