TTP224 Capacitive Touch Switch Module

Specification :

• Operating Voltage Range             2 V to 5.5 V
• Operating Current                           2.5μA @ Low Power Mode,9μA @ Fast Mode
• Output Response Time                 60mS @ Fast Mode,160mS @ Low Power Mode
• Length (mm)                                      35
• Width (mm)                                       29
• Height (mm)                                      10
• Weight (gm)                                       3
• Shipment Dimensions                    6 × 8 × 2 cm

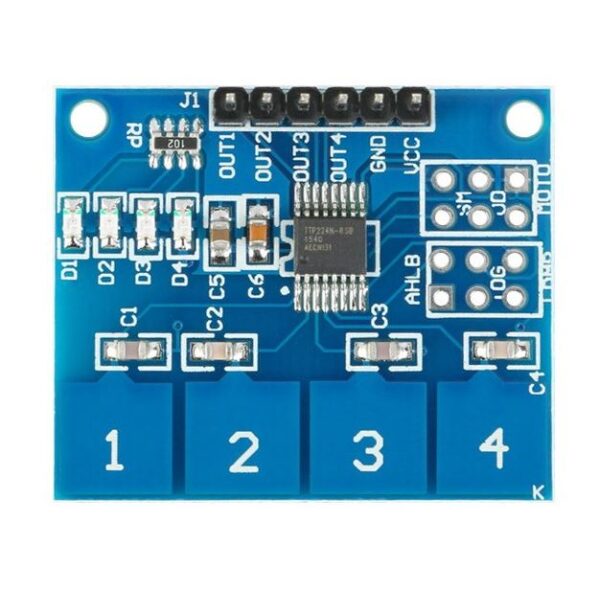

This is a 4 switch digital touch sensor with capacitive sense technology, the TTP 224 IC offers capacitive sense input feed designed for touchpad control, followed by a 4- finger-sized touchpad. The board has a jumper’s arrangement to change the keypress output mode in Timed or Toggle, Active High or Active Low. Separate jumper adjustments are provided for changing the response time of the pressed key: 60mS fast mode or 160mS in Low power. The output side of the board has 6 pin headers, with 4 pins to be connected with the digital I/O of any microcontroller board (Arduino, ARM STM32). 4 status LED SMD types are provided to check the status of each pressed key. TTP 224 4 Channel Digital Touch Sensor is compatible with all Arduino’s board. The board finds applications in HMI(Human-machine Interface), mechanical Button key replacement.
