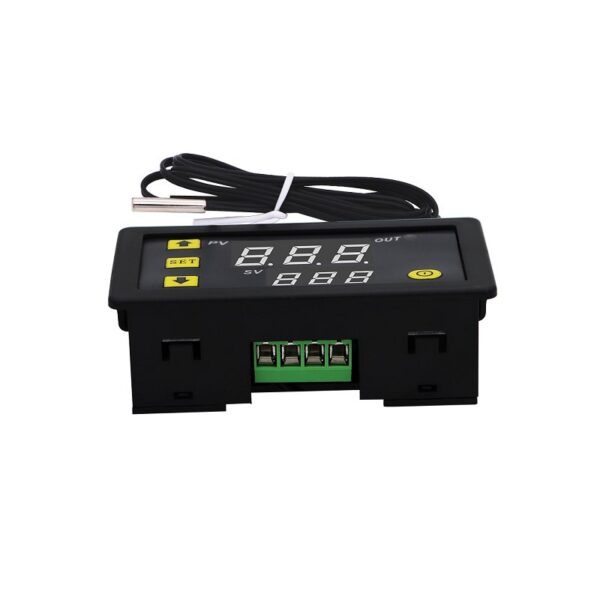

This W3230 Digital Temperature Controller Microcomputer Thermostat Switch features an NTC 10K waterproof temperature sensor. When the temperature of the object reaches a certain set temperature at that time the microcomputer switches on the relay, inturn switching on the device connected to the output terminals.
Specifications
| Model | W3230 |
| Input Supply Voltage (VDC) | 12:00 AM |
| Output Relay Contact Capacity | 10A 220V / 20A 12V / 20A 24V |
| Temperature Control Range (°C) | -55 ~ 120 |
| Display Color | red/blue |
| Resolution Ratio | 0.1°C(-9.9-99.9) |
| Control Accuracy | 0.1°C |
| Measurement Accuracy | ±0.1°C |
| Temperature Sensor | NTC10K Waterproof sensor |
| Working Temperature Range (°C) | -10 ~ 60 |
| Working Humidity Range | 20%~85% |
| Length (mm) | 71 |
| Width (mm) | 39 |
| Height (mm) | 26 |
| Weight (gm) | 44 |
| Shipment Weight | 0.05 kg |
Features:
- Mini temperature controller.
- With a clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters set can be saved after a short circuit.
- Relay output.
- High Control precision 0.1 centigrade
Package Includes:
- 1 x W3230 DC24V Digital Temperature Controller Microcomputer Thermostat Switch
