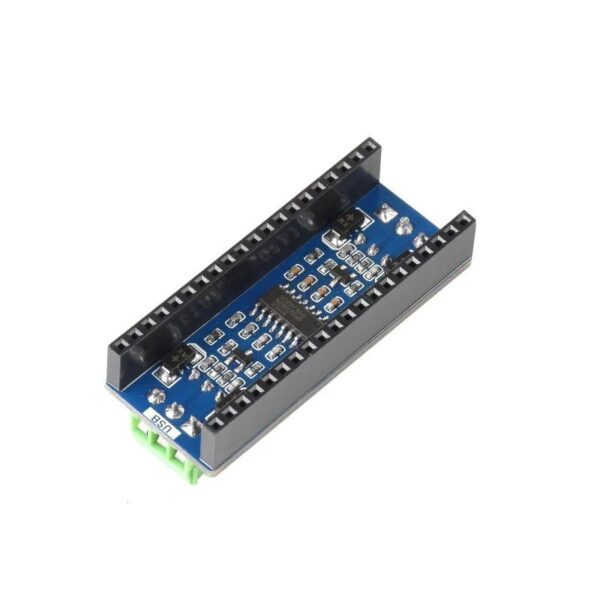

With the evolution of tiny PICO board from raspberry pi, various accessories are coming into the market to make its application rang more diversified. This Waveshare 2-Channel UART To RS232 Module for Raspberry Pi Pico is one of the addition to communication interfaces for Raspberry Pi PICO .
Specifications
Operating voltage: 3.3V-5V
RS232 transceiver: SP3232EEN
Communication bus: UART
Baudrate: 300~912600bps
What’s On Board
SP3232 RS232 transceiver
Raspberry Pi Pico header
RS232 bus interface2-channel RS232 (DB9 male connector is also available through adapter cable)
TVS diode
ESD diode
UART status indicators RXD0/TXD0: Channel 0 RX/TX indicatorsRXD1/TXD1: Channel 1 RX/TX indicators
Features:
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Using UART bus, easily converting UART to RS232, or vice versa
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Package Includes:
- 1 x PICO-2CH-RS232 Module
- 1 x DB9 to 3PIN Adapter Cable
