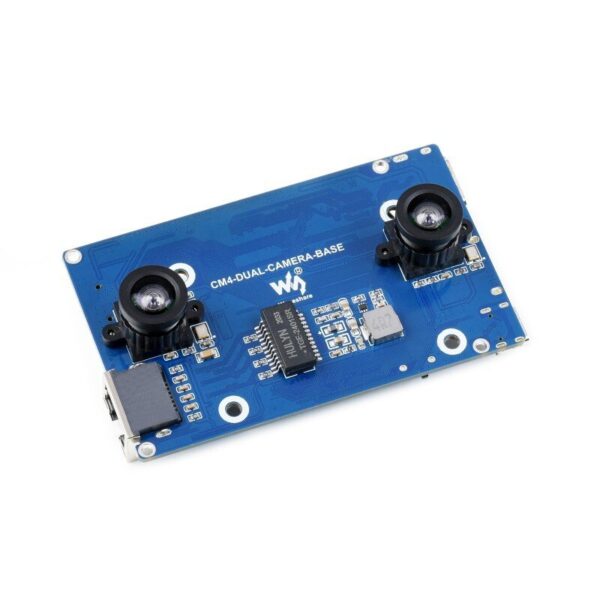

This is a binocular camera-based board that is designed for Raspberry Pi Compute Module 4. Two IMX219 800MP cameras are integrated for stereo vision projects. An interface expander board is optional for connecting other accessories.
Specification:
- 1 CM4 soclet Suitable for all versions of Compute Module 4
- 2|HDMI connector supports 4K 30fps output
- 3 USB 2.0 port for connecting sorts of USB devices
- 4 PWR & USB USB-C connector, 5V DC power supply or USB programming port
- 5 BOOT selection ON: CM4 will be booted from USB-C interface
- OFF: CM4 will be booted from eMMC or Micro SD card
- 6 CM4 status indicator PWR: Raspberry Pi power indicator
- ACT: Raspberry Pi operating status indicator
- 7 RJ45 Gigabit Ethernet 10/100/1000M compatible
- 8 Micro SD card slot for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
- 9 GPIO FFC connector for expanding 40PIN GPIO
- 10 HDMI & PCIe & USB FFC connector for expanding HDMI1, PCIe, USB
- 11 Dual cameras IMX219, 8MP
Package Includes:
- 1 x Dual camera base
- 1 x Screws pack
- 1 x OPTIONS Interface expander
- 2 x OPTIONS FFC
