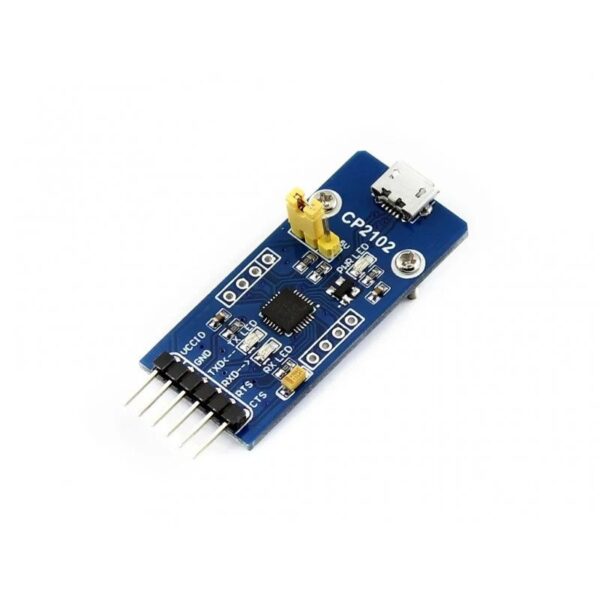

The CP2102 USB UART Board (micro) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard. It features Single-Chip USB to UART Data Transfer with no external resistors required, no external crystal required and an on-chip power-on reset circuit and voltage regulator.
Specifications
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Integrated USB protection device | SP0503 |
| UART Baudrate | 300 bps to 1 Mbits |
| Length (mm) | 44 |
| Width (mm) | 20.5 |
| Height (mm) | 4 |
| Weight (gm) | 14 |
| Shipment Weight | 0.02 kg |
Features:
- Single-Chip USB to UART Data Transfer.
- Integrated 1024-Byte EEPROM.
- USB Specification 2.0 compliant; full-speed (12 Mbps).
- USB suspend states supported via SUSPEND pins.
- All handshaking and modem interface signals.
- 576 Byte receive buffer; 640 bytes transmit buffer.
- Hardware or X-On/X-Off handshaking supported.
- Virtual COM Port Device Drivers.
- USBXpress Direct Driver Support.
- Other pins are accessible on drilled holes, easily connected to the user application system (separate pin headers are provided)
Package Includes:
- 1 x CP2102 USB UART Board (micro)
- 2 x 4-pin male pinheader & 4-pin female pin header
- 1 x 6-pin custom connector jumper wire
