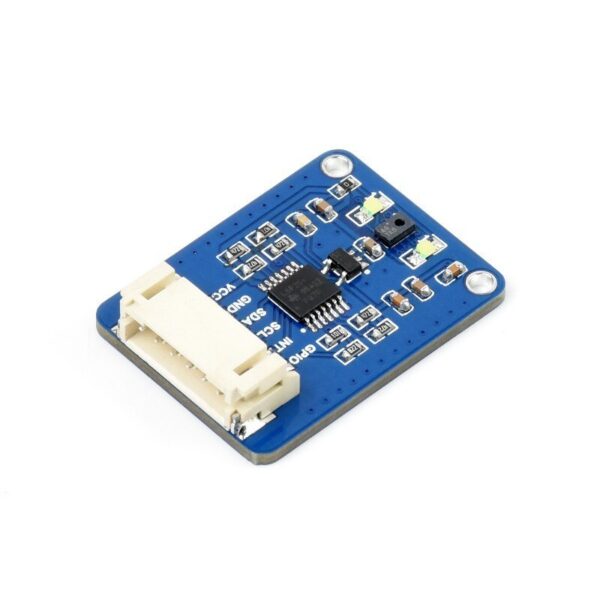

V Sensor (C) is an I2C digital UV sensor expansion board equipped with LTR390-UV-01, which can be used to measure UV and human visible light and can output light intensity data. UV Sensor (C) has the characteristics of sensitive sensing, fast response and small size. Its core sensor LTR390-UV-01 is integrated on a 27 × 20mm expansion board, which can be easily integrated into the device.
Specifications
| Operating Voltage(V) | 3.3V/5V |
| Sensors | LTR390-UV-01 |
| Response Wavelength | 280 – 430nm |
| Communication Interface | I2C (fixed address: 0x53) |
| Product Size | 27 × 20mm |
| Fixed aperture | 2.0mm |
| Shipment Weight | 0.006 kg |
Features:
- Using LTR390-UV-01, can measure ultraviolet and visible light of human eye
Built-in ADC, can directly output light intensity through I2C interface, not easy to be disturbed by noise
With interrupt output and programmable upper and lower thresholds
On-board level conversion circuit, compatible with 3.3V/5V working level
Provide complete supporting information manual (Raspberry/Arduino/STM32 sample program and user manual, etc.)
Package Includes:
- 1 x UV Sensor (C)
1 x PH2.0 5PIN wire
