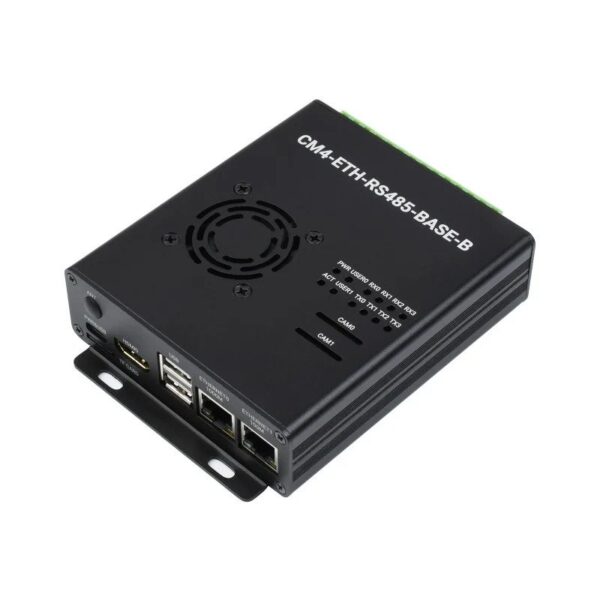

Dual ETH Mini-Computer For Raspberry Pi Compute Module 4(NOT Included), Gigabit Ethernet, 4CH Isolated RS485, USB2.0.CM4-ETH-RS485-BASE-B, which is an expansion board that can be used with Raspberry Pi Compute Module 4, and supports 7-36V DC power supply and 5V DC DC power supply of Type -C interface. Onboard four isolated RS485 interfaces, 100M+1000M dual network ports, HDMI interface, two CSI interfaces and two USB interfaces, etc
Specifications
| CM4 socket | suitable for all variants of Compute Module 4 |
| USB | USB 2.0 Type A |
| Connector | Isolated RS485 , Power screw terminal |
| Camera | MIPI CSI-2 port (15pin 1.0mm FPC connector) |
| Video | HDMI port ,supports 4K 30fps output |
| Storage | Micro-SD card socket for Compute Module 4 Lite (without eMMC) variants |
| Fan Header | Allows speed adjustment 5V |
| Indicator | Power indicator , CM4 status indicator |
| Power input | 7-36V |
| Shipment Weight | 0.519 kg |
- CM4 socket: suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
- USB: USB 2.0 Type A
- Connector: Isolated RS485 , Power screw terminal
- Camera: MIPI CSI-2 port (15pin 1.0mm FPC connector)
- Video: HDMI port ,supports 4K 30fps output
- Storage: Micro-SD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan Header: allows speed adjustment 5V
- Indicator: Power indicator , CM4 status indicator
- Power input: 7-36V
- Product weight: 280g
- Dimension: 12 x 10 x 3 mm
Features:
- Cooling Fan Included
- Precise Cut-Out With Clear Label
- Dual ETH Quad RS485 Computer Based On CM4
- Wall Mount Holes On Two Sides, Handy For Mounting
- Suitable For Raspberry Pi Applications Requiring Multi-Channel RS485 Communication
- Real-time clock with battery socket and ability to wake Compute Module 4
Package Include:
- 1 X CM4-ETH-RS485-BASE-B
- 1 X Metal case (top and bottom)
- 1 X Fan
- 1 X OPTIONS12V 2A Power Supply
- 1 X Screwdriver
- 1 X Antenna connector rubber plug
- 1 X Screws pack
