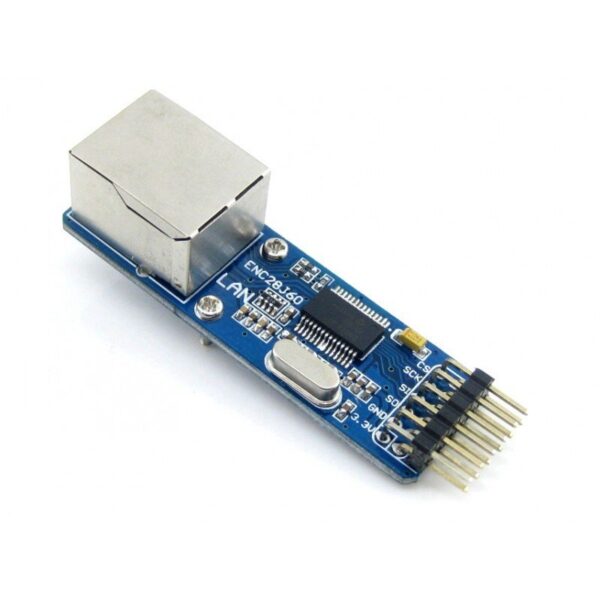

The Waveshare ENC28J60 Ethernet Board contains an Ethernet port and converts Ethernet input into SPI. It is ideal for connecting microcontrollers to the Ethernet network.
The board is based on Microchip’s ENC28J60 integrated circuit and it can be used to provide internet connectivity to microcontroller systems like Arduino boards over Ethernet.
Specifications
| Driver IC | ENC28J60 |
| Operating Voltage (VDC) | 7:12 AM |
| Crystal Oscillator | 25MHz |
| Length (mm) | 60 |
| Width (mm) | 19 |
| Height (mm) | 3.7 |
| Weight (gm) | 14 |
| Shipment Weight | 0.02 kg |
Features :
- Fully Compatible with 10/100/1000Base-T Networks
- Integrated MAC and 10Base-T PHY
- Supports One 10Base-T Port with Automatic Polarity Detection and Correction
- Supports Full and Half-Duplex modes
- Automatic Programmable Retransmit on Collision
- Programmable Padding and CRC Generation
- Automatic Rejection of Erroneous Packets
- SPI Interface with Clock Speeds Up to 20 MHz
- Chipboard ENC28J60/SS.
- The board 25MHZ crystal.
Package Includes :
- 1 x Waveshare ENC28J60 Ethernet Board
