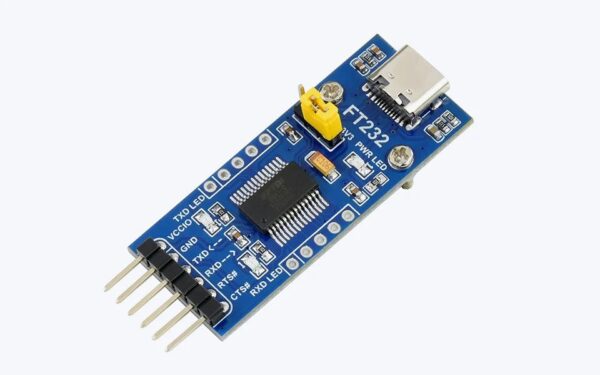

This is the FT232 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port.
Specifications
| Operating Voltage (VDC) | 3.3 ~ 5 |
| No. of Pins | 12:00 AM |
| Length (mm) | 44 |
| Width (mm) | 19 |
| Height (mm) | 15 |
| Weight (gm) | 13 |
| Shipment Weight | 0.02 kg |
Features:
- Original FT232RL onboard
- Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10…
- 3 power mode: 5V output, 3.3V output, or powered by target board (3.3V-5V)
- 3 LEDs: TXD LED, RXD LED, POWER LED
- TXD, RDX, RTS#, CTS#: connected to the onboard soldered pin headers
- The other Pins: accessible on the drill holes (separate pin headers are also provided for easily connecting to the user system, the pitch is compatible with breadboards)
Package Includes:
- 1 x FT232 USB UART Board (Type C)
- 1 x 6-pin custom connector jumper wire
- 2 x 5-pin male pinheader & 5-pin female pinheader
